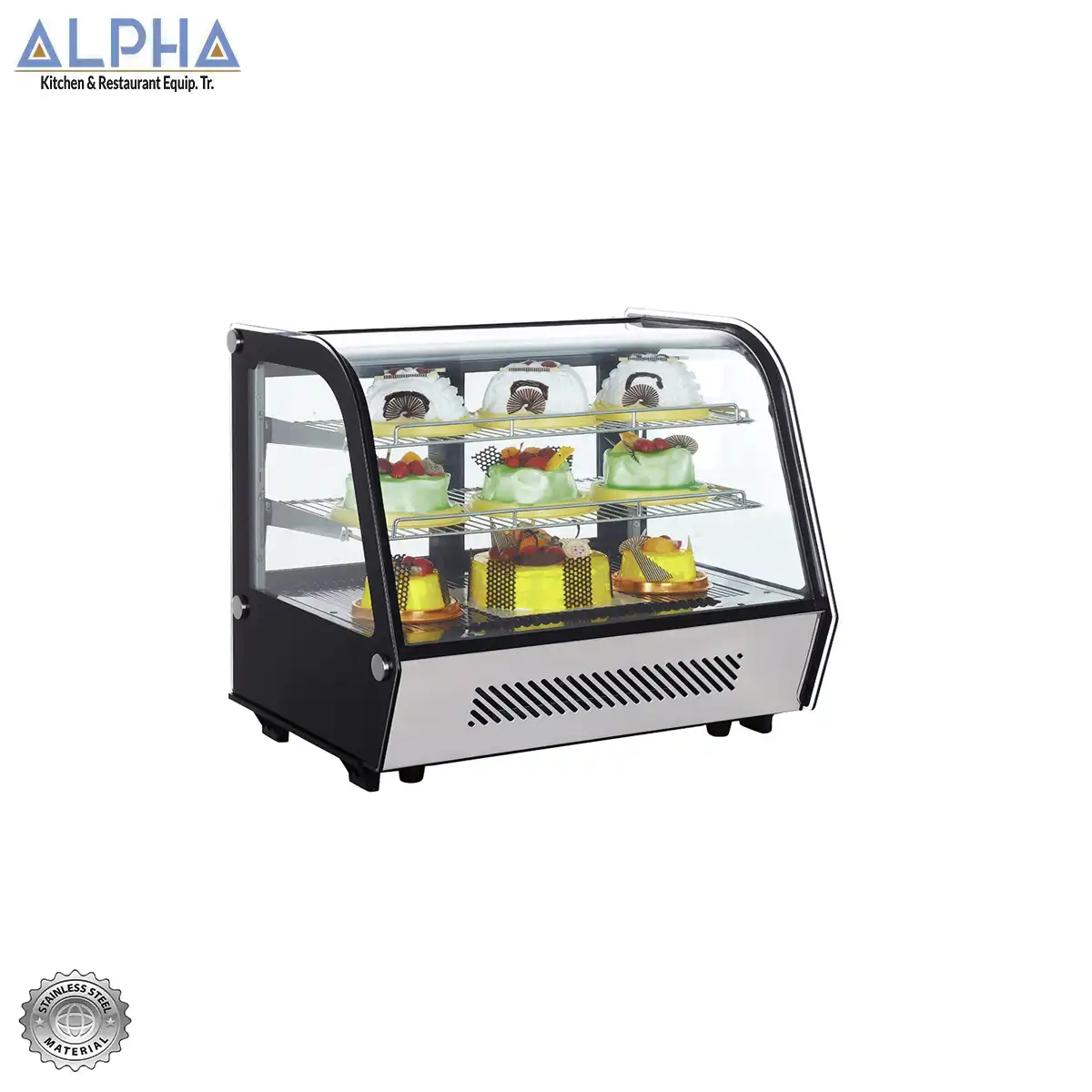

Countertop Refrigerated Display Case
The CT92C countertop refrigerated display case is designed for chilled product presentation in cafés, bakeries, dessert shops, restaurants, convenience stores, and hotel service areas. Its curved glass design gives customers a clear view of cakes, pastries, sandwiches, desserts, and packaged chilled items.
In addition, the rear sliding doors give staff convenient access during service. The compact countertop format also helps businesses display chilled products without using a full-size floor cabinet.
Key Specs Summary
- 140-litre countertop refrigerated display case.
- Temperature range from +2°C to +10°C.
- Curved full-tempered Class A glass.
- Two internal glass and stainless steel shelves.
- Rear sliding doors for staff access.
- LED lighting and digital temperature display.
Call WhatsApp Request Quotation
Technical Specifications
| Specification | Details |
|---|---|
| Model | CT92C |
| Product Type | Countertop refrigerated display case |
| Supplier | Available through ALPHA |
| ALPHA Supply Reference | ALPHA project-ready specification for countertop refrigerated display supply |
| External Dimensions | 900 x 560 x 730 mm |
| Packing Dimensions | 970 x 630 x 850 mm |
| Capacity | 140 litres |
| Temperature Range | +2°C to +10°C |
| Climate Class | 4 |
| Temperature Display | Digital |
| Refrigerant | R290 |
| LED Lighting | LED lighting included |
| Net Weight | 80 kg |
| Gross Weight | 100 kg |
| Shelf Quantity | 2 shelves plus interior base |
| Shelf Material | Clear glass with stainless steel support |
| Shelf Sizes | 386 x 180 mm, 2 pieces; 386 x 275 mm, 2 pieces |
| Shelf Loading Capacity | 13 kg + 13 kg + 17 kg |
| Door Opening | Rear sliding doors |
| Feet | 5 adjustable feet |
| Base Material | 10K stainless steel |
| Glass | Full tempered Class A glass |
Best For
- Cafés and coffee shops.
- Bakeries and pastry shops.
- Dessert counters and cake displays.
- Hotel breakfast and buffet areas.
- Restaurants and takeaway counters.
- Convenience stores and grab-and-go displays.
Compact Chilled Product Display
The CT92C combines refrigerated storage with an attractive countertop presentation. Its curved glass front helps customers see displayed products clearly, while the internal LED lighting improves visibility throughout the cabinet.
Moreover, the two shelf levels allow products to be arranged by type, size, or service priority. The rear sliding doors also let staff restock and serve items without blocking the customer-facing side.
Display Capacity and Shelf Layout
| Display Level | Shelf Details | Maximum Listed Load |
|---|---|---|
| Upper Shelf | Clear glass and stainless steel shelf | 13 kg |
| Lower Shelf | Clear glass and stainless steel shelf | 13 kg |
| Interior Base | Lower display base | 17 kg |
Installation and Usage Notes
-
- Place the display case on a level and stable counter.
- Confirm the counter can support the unit and displayed products.
- Allow ventilation clearance around the refrigeration system.
- Keep the unit away from direct sunlight and strong heat sources.
- Do not block internal airflow with oversized products.
- Distribute products evenly across the shelves.
- Clean the glass, shelves, doors, and interior surfaces regularly.
- Confirm the required electrical supply before installation.
Delivery and Support in UAE
ALPHA supplies countertop refrigerated displays, cake showcases, commercial chillers, bakery equipment, and food display equipment for cafés, restaurants, hotels, bakeries, dessert shops, and foodservice projects across the UAE. Product availability and delivery timing can be confirmed before quotation.
For the CT92C refrigerated display case, request a quotation from ALPHA.
Warranty and After-Sales Note
Warranty and after-sales support depend on the confirmed quotation and final supply terms. Warranty coverage does not include damage caused by blocked ventilation, unsuitable electrical supply, overloading, poor cleaning, impact, misuse, or unauthorized repair.
Related Commercial Kitchen Equipment
- Cake Display Refrigerator
- Countertop Chiller
- Commercial Upright Chiller
- Pastry Refrigerated Table
- Bakery Display Equipment
FAQ
What is the CT92C used for?
It is designed to display cakes, pastries, sandwiches, desserts, beverages, and other suitable chilled products.
What is the temperature range?
The listed operating temperature range is +2°C to +10°C.
What is the storage capacity?
The CT92C has a listed internal capacity of 140 litres.
How many shelves are included?
The unit includes two internal shelves plus the lower interior display base.
Where are the doors located?
The display case has rear sliding doors for staff access and restocking.
Does the display include lighting?
Yes. The supplied specification includes internal LED lighting.
