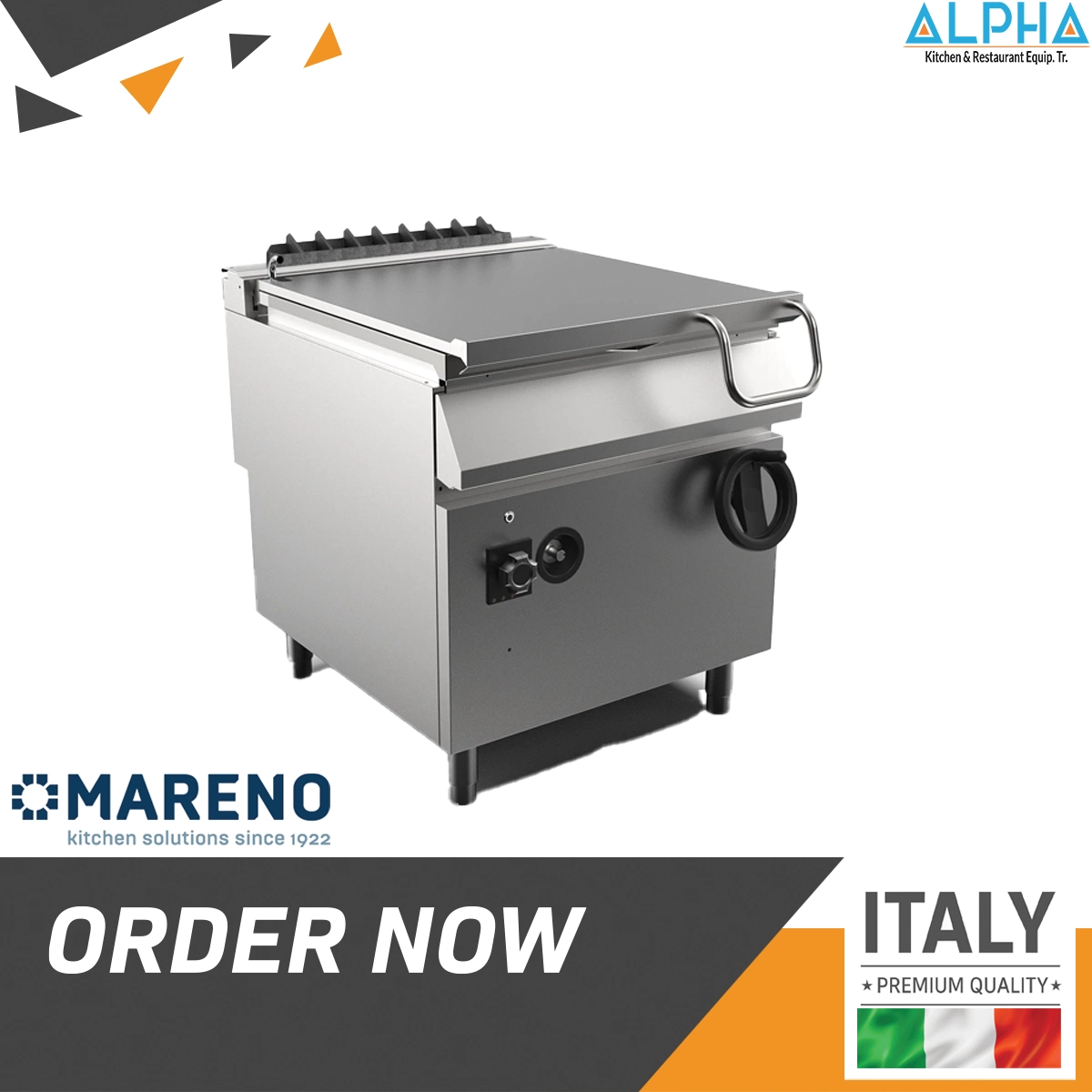

Mareno BR98G80 Gas Tilting Bratt Pan 80 L
The Mareno BR98G80 gas tilting bratt pan is a heavy-duty 80 litre cooking unit for restaurants, hotels, catering kitchens, central kitchens, hospitals, staff canteens, and food production areas. It helps kitchen teams fry, braise, simmer, sauté, stew, and cook bulk recipes in one strong commercial cooking pan.
Available through ALPHA in the UAE, this gas bratt pan combines AISI 304 stainless steel construction, manual tilt, a 10 mm Duplex tank bottom, automatic water filling, and a wide temperature range from 100°C to 280°C. Therefore, it suits high-volume kitchens that need flexible cooking and easy emptying after production.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Mareno BR98G80 Gas Tilting Bratt Pan 80 L |
| Product Type | Freestanding gas tilting bratt pan with manual tilt |
| Brand | Mareno |
| Model | BR98G80 |
| Supplier | Available through ALPHA |
| ALPHA Supply Reference | ALPHA project-ready specification for commercial gas bratt pan supply |
| Pan Capacity | 80 litres |
| External Dimensions | 800 mm width x 920 mm depth x 900 mm height |
| Tank Dimensions | 770 mm width x 710 mm depth x 200 mm height |
| Net Weight | 180 kg |
| Gas Power | 20 kW |
| Electric Power | 0.015 kW |
| Voltage | 220–240 V, 1 phase |
| Cooking Zones | 1 cooking zone, 1 x 20 kW |
| Temperature Range | 100°C to 280°C |
| Main Structure | AISI 304 stainless steel |
| Tank Bottom | 10 mm Duplex gauge bottom |
| Tank Shape | Rectangular tank with radiused corners for easier cleaning |
| Tilting System | Manual lifting mechanism |
| Water Filling | Pushbutton-controlled automatic tank filling with fixed water tap on top |
| Lid | Double-skinned lid with rear drip zone and spring-balanced AISI 304 hinges |
| Heating System | Steel burner with stabilized flame under the tank |
| Gas Safety | Gas safety valve with thermocouple |
| Ignition | Electric pilot burner ignition operated by gas valve pushbutton |
| Safety System | Heating interruption system when the tank is raised |
| Protection Rating | IPX5 |
| Feet | Stainless steel adjustable feet |
| Main Application | Bulk frying, braising, simmering, sautéing, stewing, sauces, rice, vegetables, and meat recipes |
Call WhatsApp Request Quotation
Key Specs Summary
| Buying Point | Details |
|---|---|
| 80 Litre Capacity | Suitable for high-volume cooking in hotels, catering kitchens, and central kitchens |
| Gas Heating | 20 kW gas burner supports fast cooking and strong heat output |
| Manual Tilt | Tilting pan helps staff empty cooked food and clean the tank more easily |
| Heavy-Duty Tank | 10 mm Duplex bottom supports demanding commercial cooking tasks |
| Wide Temperature Range | 100°C to 280°C range supports frying, braising, simmering, and stewing |
| Commercial Safety | Thermocouple safety, heating cut-off during tilt, IPX5 rating, and adjustable feet |
Best For
- Hotel kitchens and banquet cooking sections.
- Catering kitchens and central kitchens.
- Restaurants with high-volume sauce, rice, meat, or vegetable production.
- Hospitals, schools, staff canteens, and institutional kitchens.
- Food production areas that need bulk cooking with controlled tilting.
- Cloud kitchens preparing large batches for multiple delivery brands.
Heavy-Duty Gas Bratt Pan for Bulk Cooking
The Mareno BR98G80 helps chefs cook large batches in one pan. Therefore, it can replace several smaller pots and pans in kitchens that handle repeated production every day.
80 Litre Manual Tilting Pan
The 80 litre tank supports bulk cooking, while the manual tilt helps staff discharge cooked food with better control. As a result, teams can move finished recipes into containers more efficiently.
20 kW Gas Burner
The 20 kW steel burner heats from below the tank with a stabilized flame. In addition, the thermostat lets chefs adjust the temperature from 100°C to 280°C according to the recipe.
10 mm Duplex Tank Bottom
The tank includes a 10 mm Duplex bottom for heavy-duty commercial cooking. Moreover, the rectangular tank and radiused corners help staff clean the cooking area after each production cycle.
Automatic Water Filling
The pushbutton-controlled filling system helps staff add water directly into the pan. Consequently, kitchens can speed up cooking preparation, cleaning, and recipe setup.
Double-Skinned Lid
The double-skinned lid includes a rear drip zone that directs condensate back into the pan. In addition, spring-balanced AISI 304 hinges help staff operate the lid during daily service.
Gas Bratt Pan Selection Notes
| Selection Point | Why It Matters |
|---|---|
| Cooking Capacity | The 80 litre pan suits bulk cooking without taking the footprint of larger 120 litre units. |
| Gas Supply | Confirm gas type, pressure, regulator, ventilation, and site connection before installation. |
| Manual Tilt | Manual tilting helps with discharge and cleaning, but staff must follow safe handling procedures. |
| Water Connection | Plan water inlet, drainage, and cleaning workflow before final kitchen layout approval. |
| Kitchen Clearance | Check front clearance for tilting, container placement, filling, cooking, and cleaning. |
Installation and Usage Notes
- Confirm the final supplied model as Mareno BR98G80 before quotation approval.
- Check the installation space against the 800 x 920 x 900 mm dimensions.
- Confirm gas type, gas pressure, regulator, ventilation, and exhaust requirements before installation.
- Provide 220–240 V single-phase electrical supply for ignition and control requirements.
- Confirm water inlet, drainage position, and safe discharge area before installation.
- Keep enough front clearance for tilting, unloading, stirring, filling, and cleaning.
- Do not raise or tilt the tank while staff stand too close to hot contents.
- Use suitable containers when emptying hot food from the pan.
- Clean the tank, lid, drip zone, top, and exterior stainless steel surfaces after use.
- Use qualified technicians for gas connection, commissioning, and service.
Delivery and Support in UAE
ALPHA supplies Mareno gas bratt pans and commercial cooking equipment for restaurants, hotels, catering kitchens, central kitchens, cloud kitchens, hospitals, canteens, and food production projects across the UAE. In addition, ALPHA can confirm availability, delivery timing, gas requirements, installation needs, and warranty terms before quotation.
For bratt pan selection or heavy-duty cooking line planning, request a quotation from ALPHA with your required cooking capacity and kitchen layout.
GCC Export Support
ALPHA can support selected export orders from the UAE to Qatar and Saudi Arabia. However, availability, packing, delivery terms, shipping cost, and warranty arrangements depend on the selected model, quantity, and destination.
Warranty and After-Sales Note
ALPHA provides after-sales support in the UAE according to the confirmed quotation and supplied Mareno specification. However, warranty coverage does not include damage caused by incorrect gas supply, poor ventilation, improper installation, scale build-up, misuse, poor cleaning, impact, poor site handling, or unauthorized repair.
Related Commercial Cooking Equipment
- Mareno Gas Boiling Pan 150 L PE98GD15
- Mareno Electric Tilting Bratt Pan BR98E80
- Mareno Electric Boiling Pan 150 L PE98ED15
- Commercial Stock Pot Stove
- Heavy-Duty Cooking Line Equipment
FAQ
What is the Mareno BR98G80 used for?
The Mareno BR98G80 is used for bulk frying, braising, simmering, stewing, sautéing, sauces, meat recipes, rice, vegetables, and high-volume commercial cooking.
What is the capacity of this gas bratt pan?
The pan capacity is 80 litres.
What are the external dimensions?
The external dimensions are 800 mm width x 920 mm depth x 900 mm height.
What is the gas power?
The gas power is 20 kW with one cooking zone.
Does this model have manual tilt?
Yes. The BR98G80 has a manual tilting mechanism for emptying and cleaning the cooking tank.
What is the temperature range?
The thermostat-controlled temperature range is 100°C to 280°C.
Does it include water filling?
Yes. The unit includes pushbutton-controlled automatic tank filling and a fixed water tap on top.
Can ALPHA supply this Mareno bratt pan across the UAE?
Yes. ALPHA supplies Mareno commercial cooking equipment across the UAE, subject to availability, delivery requirements, installation needs, and confirmed quotation terms.
