Gastronorm Trolley for 36 × GN
GN Pan Trolley for 36 × GN 1/1 or 2/1 18 nos custom made fabrication In UAE
Trolley Gastronorm for 36 × GN Information :

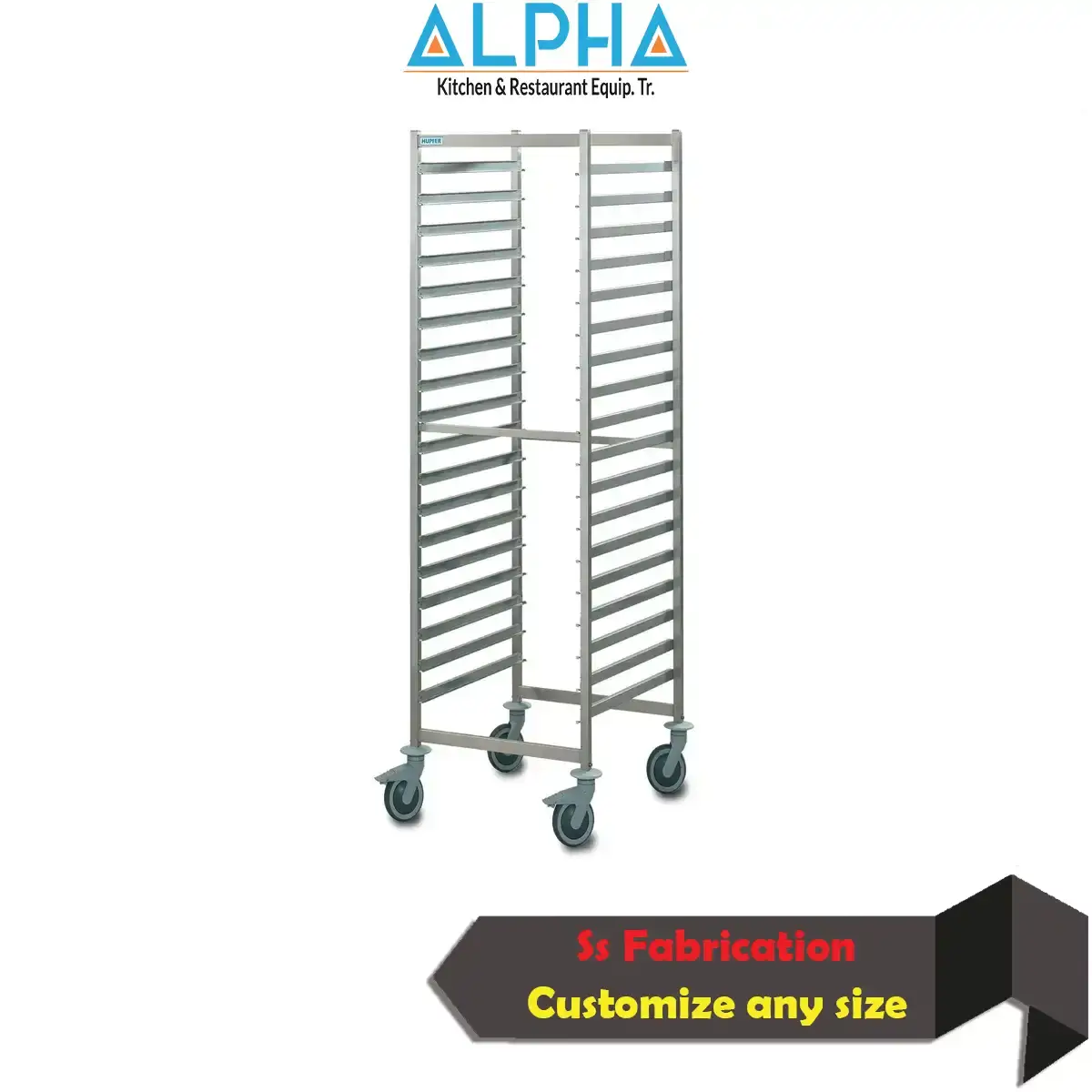

GN Trolley for 36 × GN
Trolley with one compartment in robust, self-supporting and hygienic design, made of high-quality 1.0 × 1.0” (25 × 25 mm) stainless steel. 18 pairs of welded U-shaped shelf rails at distances of 3.0” (75 mm), with push-through and tilt protections on both sides . In addition to the vertical square tubes, two 0.8 × 0.4” (20 × 10 mm) rectangular-profile cross braces ensure user-friendly handling. 4 polyethylene disc bumpers serve as bumpers and protect trolley on all sides as well as building-side walls from being damage. Trolley runs on 4 swivel casters of which 2 with total locks, ø 4.9” (125 mm), with pin fastening.
The gastronomy trolley 1 / 36 GN has the lowest empty weight in comparison to other products and therefore provides outstanding handling properties . while its rail spacing of 75 mm gives it a 50 % greater capacity (when GN containers without lids with a depth of 150 mm are placed in it).
Technical Information :
Maximum dimension: | 530 × 325 mm |
Capacity: | 36 × GN 1/1 – 18 × GN 2/1 Deep 10cm |
Modular dimension: | 75 mm with 18 pairs of insert rails (U) |
Insertion type: | Wide |
Rectangular tube frame: | 30× 30 mm |
Cross braces | 20 × 10 mm |
Payload: | 180 kg/397 lbs |
Castors: | 4 swivel castors, 2 with lock, ⌀ 125 |
Main construction: | open, one-part |
Design: | High |
Weight: | 21.47 kg |
Width: | 739 mm |
Depth: | 659 mm |
Height: | 1662 mm |
