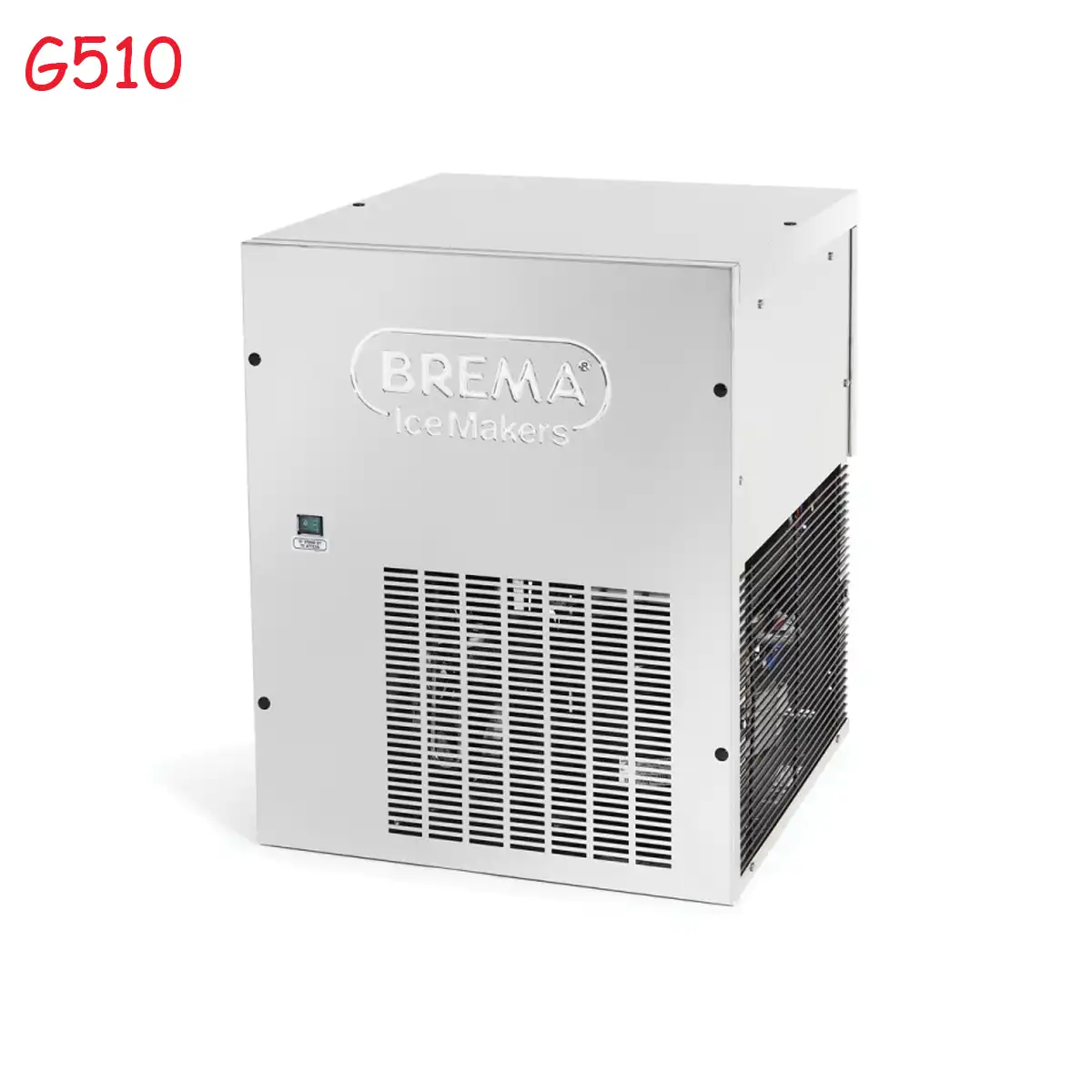

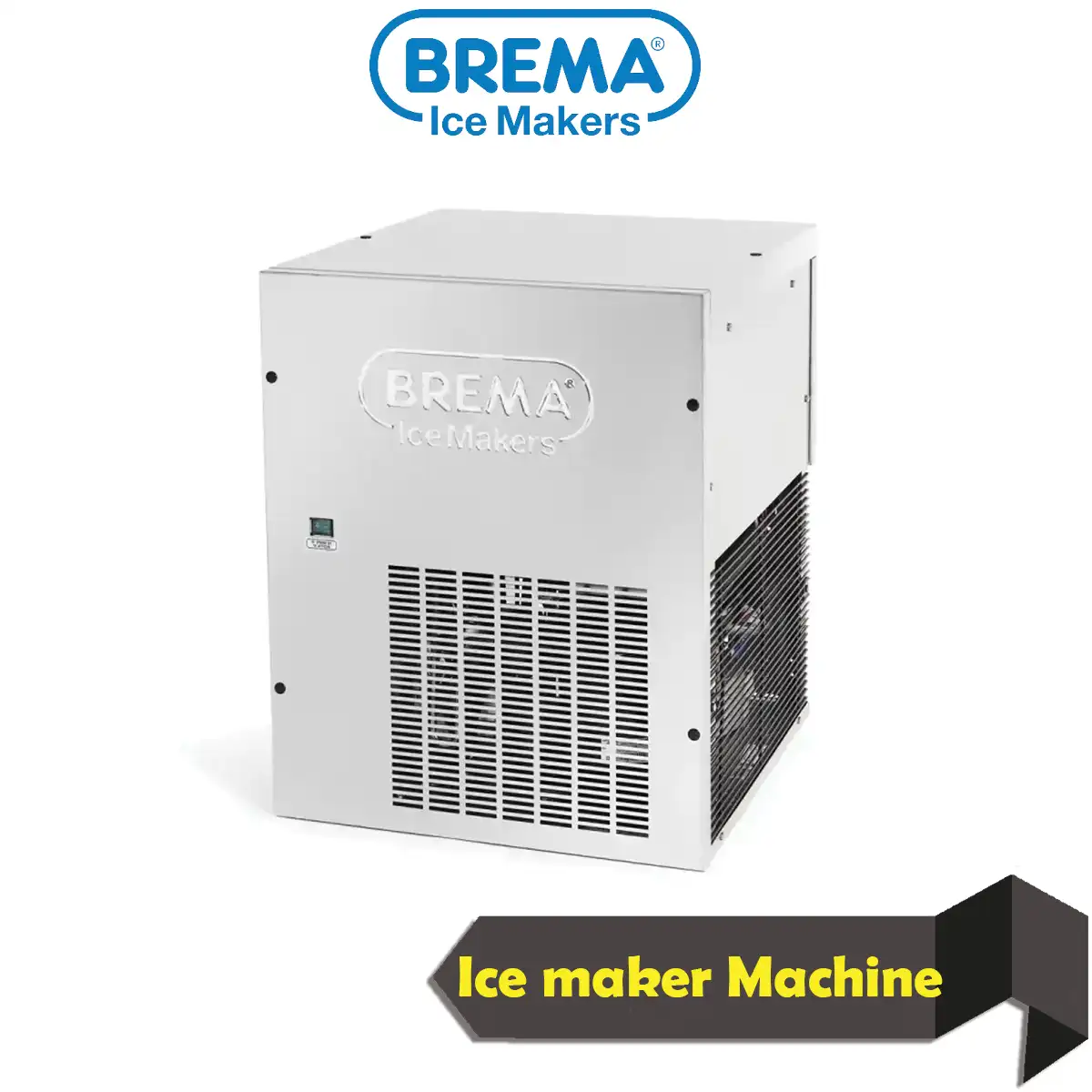

Brema Modular Ice Flaker Machine G510A
The Brema Modular Ice Flaker Machine G510A is designed for high-volume production of granular flake ice in professional foodservice and display applications. It is suitable for hotels, restaurants, seafood displays, supermarkets, catering kitchens, healthcare facilities, spas, and food production areas.
This modular ice flaker head produces ice directly into a compatible storage bin installed below the unit. Available through ALPHA in the UAE, it is a practical choice for operations that require continuous flake ice production with separate high-capacity storage.
Key Specs Summary
| Specification | Details |
|---|---|
| Product Type | Modular commercial ice flaker machine |
| Brand | Brema |
| Model | G510A |
| Ice Type | Granular flake ice |
| Daily Production | 510 kg per 24 hours at 21°C ambient / 15°C water conditions |
| Dimensions | 560 x 569 x 695 mm |
| Power Consumption | 1700 W |
Call WhatsApp Request Quotation
Granular flake ice is useful when products need fast surface cooling and easy presentation. It can support seafood displays, chilled buffet presentation, beverage service, food processing, and selected medical or wellness applications.
The Brema G510A is a modular unit. Therefore, it requires a compatible ice storage bin below the machine head. The correct bin should be selected according to daily ice demand, available installation space, and service workflow.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Modular Ice Flaker Machine G510A |
| Product Category | Commercial Ice Maker Machines |
| Brand | Brema |
| Model | G510A |
| Supplier | Available through ALPHA |
| ALPHA Supply Reference | ALPHA project-ready specification for modular flake ice production equipment |
| Machine Type | Modular ice maker head |
| Ice System | Granular flake ice system |
| Production in 24 Hours | 510 kg at 21°C ambient / 15°C water conditions |
| Cooling System | Air-cooled or water-cooled configuration, subject to confirmed supplied version |
| External Dimensions | 560 mm width x 569 mm depth x 695 mm height |
| Power Consumption | 1700 W |
| Electrical Supply | 220–240 V / 50 Hz |
| Fuse | 16 A |
| Water Consumption | 1 L/kg for air-cooled version; 5.8 L/kg for water-cooled version |
| Net Weight | 102 kg |
| Gross Weight | 113 kg |
| External Finish | AISI 304 stainless steel, Scotch-Brite finish |
| Refrigerant | To be confirmed against the supplied G510A version before quotation |
| Storage Bin Requirement | Separate compatible storage bin required |
| Compatible Bin Option | Brema BIN240PE ice storage bin can be reviewed for the installation |
| Main Application | Flake ice production for seafood display, hotels, restaurants, food retail, catering, food processing, healthcare, and wellness applications |
Best For
- Fish markets and seafood counters requiring granular ice display.
- Supermarkets displaying chilled seafood or fresh food products.
- Hotels and restaurants requiring high-volume flake ice production.
- Catering kitchens and banquet operations with regular ice demand.
- Food production areas requiring practical surface cooling.
- Healthcare, wellness, and spa applications where granular ice is required.
- Commercial operations using a modular ice head with separate storage bin.
High-Capacity Granular Flake Ice Production
The Brema G510A is supplied for professional operations that need large quantities of granular flake ice. Its modular format allows the machine head to sit above a compatible storage bin, so produced ice drops directly into the holding compartment below.
510 kg Daily Production Capacity
The machine is rated to produce 510 kg of granular flake ice per 24 hours under specified test conditions. This capacity suits businesses that need high ice output for display, handling, chilling, or service requirements.
Granular Flake Ice for Display and Cooling
Granular flake ice is easy to spread and shape around products. This makes it useful for seafood counters, chilled product displays, buffet presentation, food processing, and other applications that require direct surface cooling.
Modular Ice Machine Configuration
This product is the ice-making head and requires a separate compatible storage bin. A modular arrangement gives buyers flexibility to select storage capacity according to daily demand and installation space.
AISI 304 Stainless Steel Finish
The outer body uses AISI 304 stainless steel with a Scotch-Brite finish. This commercial finish is suitable for foodservice environments where cleaning, durability, and professional appearance are important.
Air-Cooled or Water-Cooled Selection
The G510A can be reviewed in air-cooled or water-cooled configuration. The correct selection depends on site ventilation, water usage considerations, room conditions, and project requirements.
Compatible Ice Storage Bin Planning
The storage bin must be selected before order confirmation. For operations needing high storage capacity, the Brema BIN240PE can be reviewed as a compatible 180 kg ice storage solution, subject to final configuration approval.
Ice Flaker Selection Guide
| Selection Point | Why It Matters |
|---|---|
| Required Daily Output | The G510A is rated at 510 kg per 24 hours under specified operating conditions. |
| Ice Application | Granular flake ice is practical for seafood display, product cooling, food processing, and selected service uses. |
| Storage Bin Size | A modular machine requires a compatible bin sized for the required ice holding capacity. |
| Cooling Configuration | Air-cooled and water-cooled options require different site conditions and utility planning. |
| Installation Clearance | The machine and storage bin combination needs adequate height, access, ventilation, drainage, and service clearance. |
Installation, Clearance, and Usage Notes
- Confirm whether air-cooled or water-cooled configuration is required before quotation.
- Confirm the supplied refrigerant version before final order approval.
- Select a compatible ice storage bin before confirming the complete installation.
- Check the combined height and footprint of the machine head and selected storage bin.
- Allow adequate ventilation clearance according to the selected cooling configuration.
- Provide suitable water inlet, drain connection, and electrical supply at the installation point.
- Use potable water and follow water filtration recommendations for ice quality and machine protection.
- Keep the machine away from excessive heat sources where possible.
- Plan access for cleaning, maintenance, and ice removal from the storage bin.
- Service and refrigerant work must be completed by qualified technicians.
Delivery and Support in UAE
ALPHA supplies Brema modular ice flaker machines for hotels, restaurants, seafood counters, supermarkets, catering kitchens, food production areas, healthcare facilities, and professional foodservice projects across the UAE. Product availability, cooling configuration, storage bin selection, delivery timing, and warranty terms can be confirmed before quotation.
For model confirmation and ice production planning, request a quotation from ALPHA with your required ice application, production demand, and preferred storage capacity.
GCC Export Support
ALPHA supplies commercial kitchen equipment from the UAE and can support selected export orders to Qatar and Saudi Arabia. Availability, packing, delivery terms, and shipping cost depend on the product type, quantity, and destination.
Warranty and After-Sales Note
This product is supplied with after-sales support in the UAE. Warranty coverage depends on the confirmed quotation, supplied machine version, installation conditions, and final specification. Damage caused by incorrect electrical supply, inadequate ventilation, poor water quality, blocked drainage, poor cleaning, improper installation, misuse, or unauthorized repair is not covered.
Related Commercial Kitchen Equipment
Explore Related Categories
- Commercial Ice Maker Machines
- Ice Flaker Machines
- Commercial Refrigeration Equipment
- Food Display Equipment
FAQ
What is the Brema G510A used for?
The Brema G510A is a modular ice flaker machine used to produce granular flake ice for seafood display, hotels, restaurants, supermarkets, catering operations, food processing, healthcare, and wellness applications.
How much ice does the Brema G510A produce?
The G510A is rated to produce 510 kg of granular flake ice per 24 hours at specified operating conditions of 21°C ambient temperature and 15°C water temperature.
What are the dimensions of the ice flaker machine?
The machine dimensions are 560 mm width x 569 mm depth x 695 mm height.
Does the G510A include an ice storage bin?
No. The G510A is a modular ice maker head and requires a separate compatible storage bin. The Brema BIN240PE can be reviewed as a storage bin option, subject to final compatibility confirmation.
What type of ice does this machine produce?
It produces granular flake ice, which is practical for product display, seafood cooling, food preparation, and selected professional applications.
Is the machine air-cooled or water-cooled?
Air-cooled and water-cooled configurations can be reviewed. The required version should be confirmed based on the installation site and quotation.
Which refrigerant does the G510A use?
The refrigerant should be confirmed against the final supplied G510A version before quotation, as model versions can differ.
Can ALPHA supply the Brema G510A across the UAE?
Yes. ALPHA supplies commercial ice equipment across the UAE, subject to product availability, configuration confirmation, installation requirements, and quotation details.
Can ALPHA support selected export orders?
Selected export orders to Qatar and Saudi Arabia can be reviewed. Packing, delivery terms, shipping cost, and availability depend on the product type, quantity, and destination.
