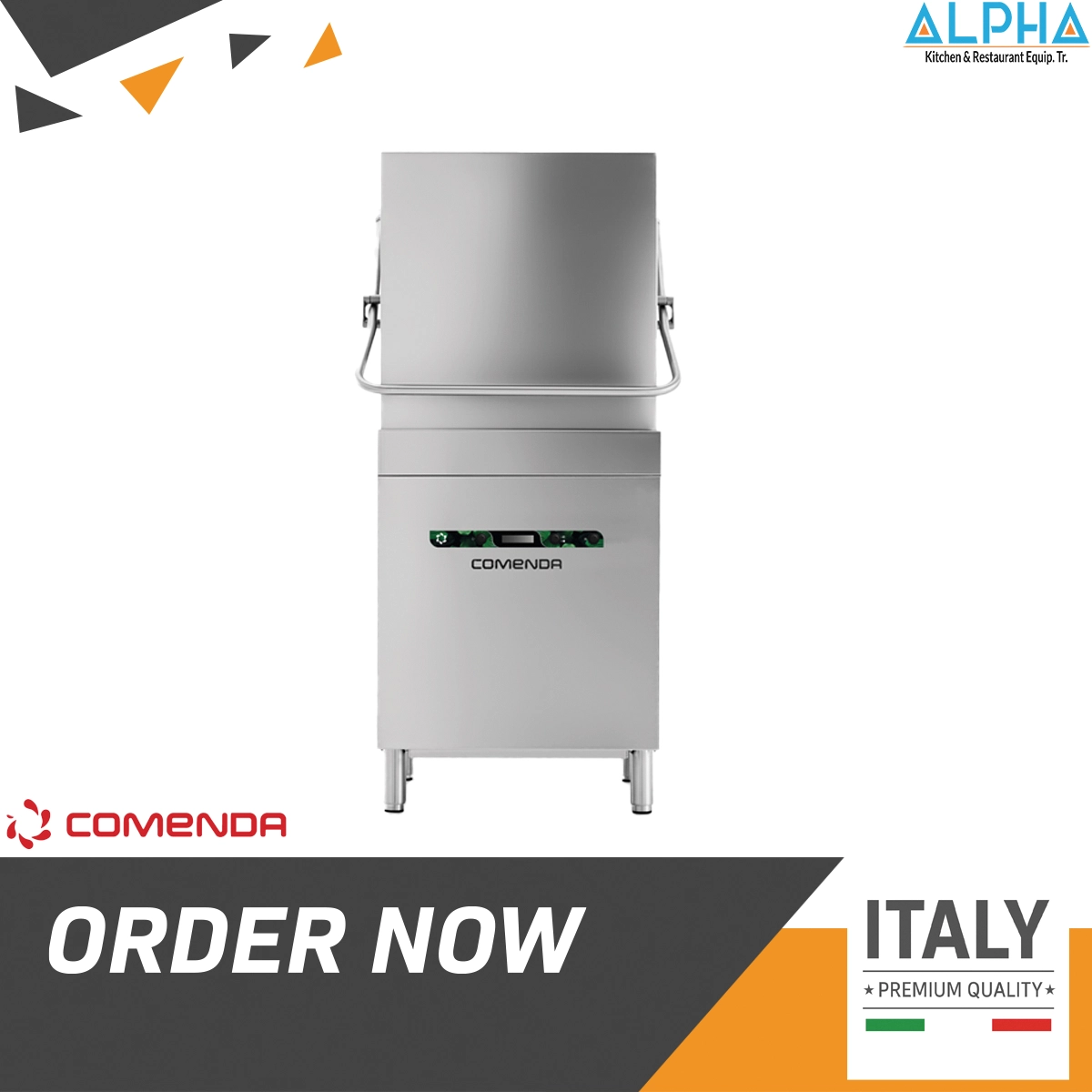

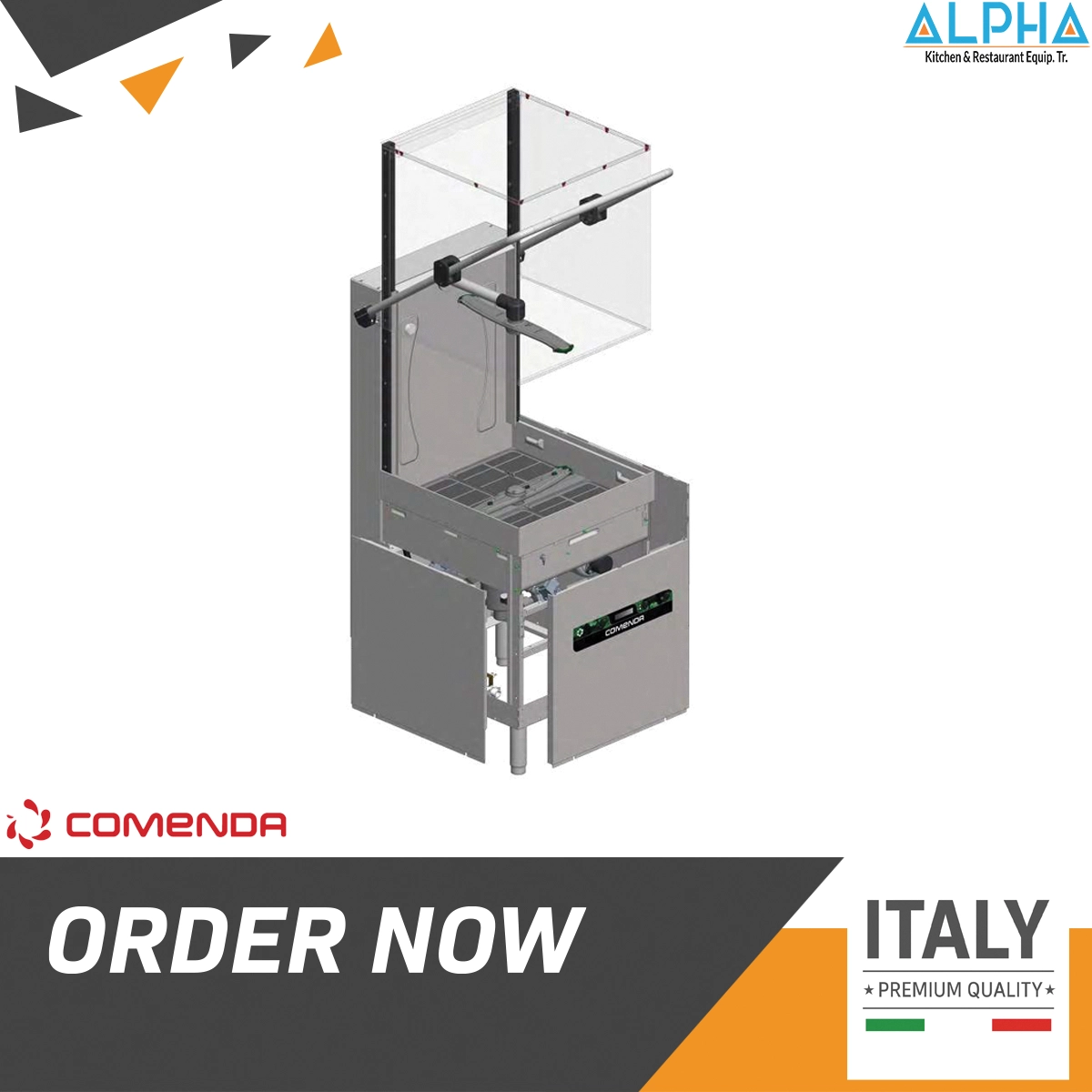

Pass Through Dishwasher EC44

EC44 Pass-Through Dishwasher – High-Performance, Electromechanical Ware washing Unit

The EC44 Pass-Through Unit by EQUILYBRA is a powerful and efficient ware washing solution, engineered for high-demand kitchens in restaurants, hotels, hospitals, and catering operations. With electromechanical controls, durable stainless steel construction, and integrated dosing systems, the EC44 guarantees exceptional results, hygiene, and ease of use.

This professional pass-through dishwasher is designed for 500×500 mm racks and delivers rapid and intensive cleaning with two selectable wash cycles. Thanks to its Hydra master system and WRIS®2+ technology, the EC44 ensures optimal water flow, reduced consumption, and spotless cleaning performance—even with the most stubborn residue.

✅ Main Features of the EC44 Dishwasher:

• Double-Walled Pass-Through Design for seamless kitchen integration

• Electromechanical Control Panel with two wash cycles: short (90s) and intensive (120s)

• Digital Thermometer Display – Real-time monitoring of wash and rinse temperatures

• Built-in Peristaltic Pumps for automatic dosing of detergent and rinse aid

• WRIS®2+ Integrated System – optimized wash and rinse function in one streamlined solution

• Triple Filtration System – polypropylene tank surface filter, tank filter, and suction pump filter

• Hygienic Design: Deep-drawn single-piece tank with rounded corners

• Thermostop Function: Guarantees correct rinse temperature for sanitization

• Safety Features: Door microswitch halts cycle if door is opened

• Soft Sliding Pass-Through Mechanism for ergonomic operation

• Noise Level: 61 dB(A) – Quiet operation for comfortable kitchen environments

🔧 Technical Specifications:

• Rack Size: 500 x 500 mm

• External Dimensions (WxDxH): 596 x 740 x 1465 mm

• Clearance Height: 440 mm

• Electrical Supply: 400V / 3N~ / 50Hz

• Wash Programs: 2 (90s / 120s)

• Capacity: 30 racks/h (cold water) – up to 24 racks/h (hot water)

• Rinse Water Consumption: 2.6 liters per cycle

• Tank Size: 32 liters

• Pump Power: 0.66 kW

• Tank Heater: 2 kW

• Booster Heater: 5 kW

• Total Power Consumption: 7.66 kW

• Weight: 108 kg

♻️ Optional Accessories:

• CRC2 Heat Recovery Unit

• AS6LI / AS8LI Standalone Dryer

• External Water Softener

• Drain Pump Kit

• Infeed and Outfeed Tables

• Special Voltage Options

🧺 Included Rack Set:

• P12/18: Rack for 12 deep dishes or 18 standard plates

• CB: Combination rack (Height 75 mm)

• G: Cutlery/silverware container

🌍 Ideal for:

• Hotels and hospitality kitchens

• Central and cloud kitchens

• Hospitals and institutional catering

• Food courts and high-volume restaurants

• Industrial dishwashing systems
