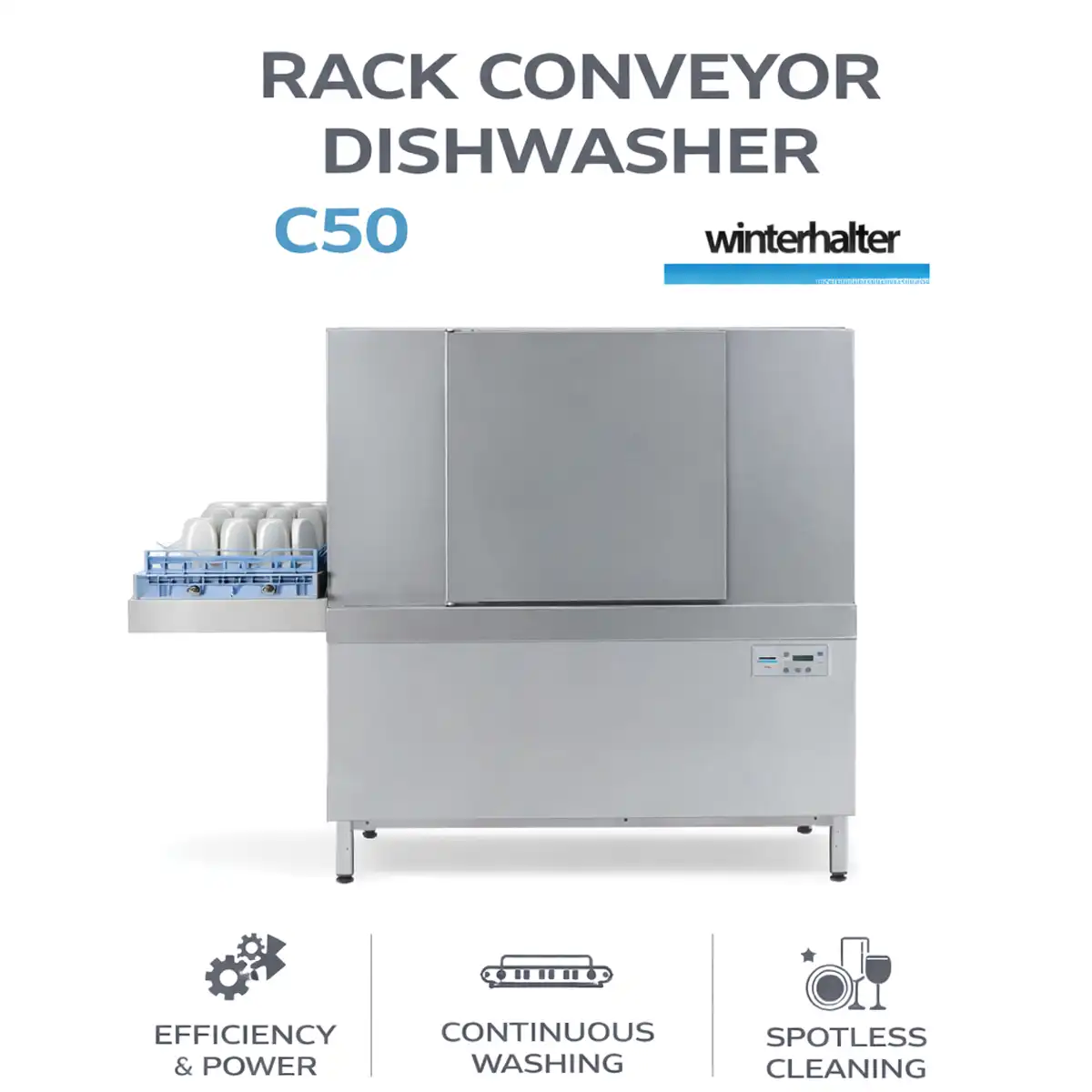

Rack Conveyor Dishwasher C50 Winterhalter
The Winterhalter C50 rack conveyor dishwasher is a high-performance warewashing solution built for fast, continuous cleaning in restaurants, hotels, canteens, and mass catering operations.
Technical Specifications :
| Model | C50 |
| Type | Rack Conveyor Dishwasher |
| Throughput | Up to 260 racks/hour |
| Speed Levels | 3 selectable speed levels |
| Versions | Single rinse or dual rinse |
| Tank Heating | 18 kW (upgradeable to 27 kW with HighTemp) |
| Boiler Heating | Stable 27 kW (independent of site water pressure from 1.5 bar) |
| HighTemp Option | Tank heating 27 kW and tank temperature up to 73°C |
| Drain / Refill Programs | Fast drain ~5 min, drain + refill ~15 min |
| Filtration | Double filtration + pump inlet filter |
| Resource Control | Zone activation (runs zones only when needed) |
| Display | Language-neutral, colour-coded pictograms |
Configuration depends on layout and throughput. Share your rack size, peak racks/hour, and available space for a correct system proposal.
Key Benefits
✔ Up to 260 racks/hour for peak service loads
📌 Modular build for linear or corner layouts
✔ Dual rinse option with pump rinse for stronger results
📌 Fast drain and refill programs reduce downtime
✔ Double filtration supports cleaner wash water
📌 Zone activation helps reduce operating costs
Why Choose the C50 for High-Volume Warewashing?
When the kitchen is under pressure, warewashing cannot become the bottleneck. The C50 is designed for high throughput with compact space requirements, while offering modular upgrades as your operation grows.
Features and Benefits
- Maximum throughput with three speed levels, so you can match peaks and quiet periods.
- Single rinse or dual rinse versions, therefore you can choose the right hygiene workflow.
- Non-pressurised boiler maintains stable rinse performance from 1.5 bar, which supports consistent results.
- HighTemp kit increases tank heating power and raises tank temperature up to 73°C for special applications.
- Fast drainage helps reduce service interruptions during water changes.
- Language-neutral interface supports staff rotation and faster onboarding.
Best For
- Hotels and resorts
- Restaurants with peak service waves
- Dining halls and canteens
- Mass catering and central kitchens
- Hospitals and institutional kitchens
Applications
✔ Plate washing lines
📍 Cup and glass racks
✔ Cutlery rack workflows
✔ Corner conveyor layouts
📍 Linear feed and unload
✔ Peak-load operations
Frequently Asked Questions
How fast is the C50 rack conveyor dishwasher?
It can reach up to 260 racks per hour, and it also offers three speed levels so the cycle can be adjusted to your load volume.
What is the difference between single rinse and dual rinse?
The unit is available in single rinse and dual rinse versions. In the dual rinse version, the machine uses a pump rinse with water from a separate rinse tank, therefore improving rinse water quality.
Does rinse performance depend on site water pressure?
The boiler is designed to work independently of water pressure from 1.5 bar, and it maintains a stable 27 kW boiler power for consistent rinse results.
Can the C50 be upgraded later?
Yes. The system is modular and supports different configuration options (for example: pre-cleaning zone, drying zone, and HighTemp mode) and can be upgraded later based on your workflow.
How long does draining and refilling take?
A fast drain program drains the tank water in around five minutes. A separate program can drain and refill the tank so the machine is ready again within about 15 minutes.
Shipping and Warranty
- Delivery and installation support available across UAE (subject to site access and project scope).
- Conveyor systems require a layout check; share your kitchen drawing for correct inlet/outlet planning.
- Warranty terms depend on configuration and operating conditions; request written confirmation with your quotation.
