Bain marie with four separate heated wells for GN 1/1 pans, each with its own thermostat and drain valve. Hold dishes at different temperatures on one 1.5 m freestanding station, built in AISI 304 stainless steel by ALPHA.
- Capacity: 4 × GN 1/1, wells up to 200 mm deep
- Control: 4 separate thermostats
- Power: 850 W per well (about 3.4 kW total)
- Size: 1500 × 700 × 900 mm (W × D × H)
Bain Marie 4 GN with 4 Separate Heated Wells
Most bain maries heat every pan from one shared water tank, so one temperature has to suit every dish. This 4 GN bain marie has four separate deep-drawn wells, each with its own thermostat, so soup can stay very hot in one well while a creamy sauce stays gently warm in the next. Water and flavours never mix between wells, and you only heat the wells you use.
Each well takes a GN 1/1 pan up to 200 mm deep and has its own stainless steel drain valve, so one well can be emptied and cleaned during service. The 1.5 m unit is built in matt AISI 304 stainless steel by ALPHA Kitchen Factory in the UAE.
Technical specifications
| Type | Electric bain marie with 4 separate heated wells |
| Capacity | 4 × GN 1/1 pans, wells up to 200 mm deep |
| Heating zones | 4, each with its own thermostat |
| Power | 850 W per well (about 3.4 kW total) |
| Drain | Individual stainless steel ball valve on each well |
| Dimensions | 1500 × 700 × 900 mm (W × D × H) |
| Material | AISI 304 stainless steel, matt finish |
| Manufacturer | ALPHA Kitchen Factory, UAE |
Best for
- Hotel restaurants: a varied buffet with different holding temperatures.
- Hospitals and institutions: dishes and diets kept fully separate.
- Catering with smaller menus: heat only the wells you need.
Choose your model

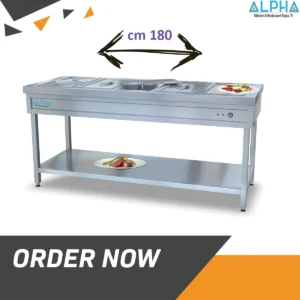

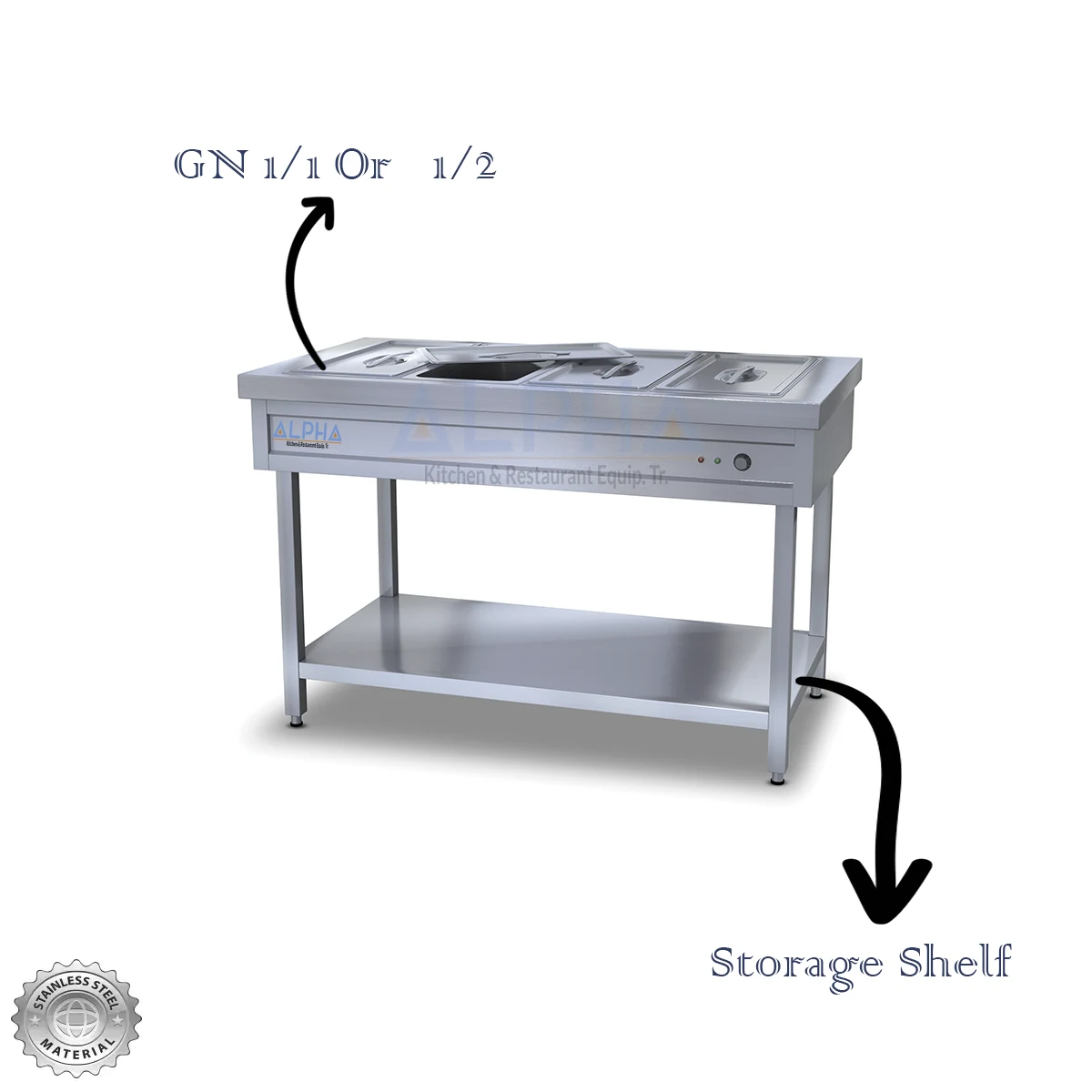

Need more wells? See the bain marie 5 GN with separate wells. Prefer one shared water bath with a sneeze guard and tray slide? See the bain marie 4 GN 1/1 serving station. For storage below, see the 4 GN bain marie with glass top and cabinet.
Delivery, warranty and support
- Free delivery to all 7 emirates.
- Shipping across the GCC, including Saudi Arabia and Qatar.
- 1-year warranty, with service from our UAE technicians.
- See it at our factory showroom in Ajman.
Frequently asked questions
What is the advantage of separate wells?
Each pan sits in its own heated well with its own thermostat, so every dish is held at the temperature it needs, flavours never mix, and you can switch off the wells you are not using.
How deep can the pans be?
Each well takes a GN 1/1 pan up to 200 mm deep.
How is it cleaned?
Each well has its own stainless steel drain valve, so you can empty and clean the wells one by one.
What is the power consumption?
850 W per well, about 3.4 kW with all four wells on.
Do you deliver outside the UAE?
Yes. We ship to Saudi Arabia, Qatar and the rest of the GCC. Send us your city on WhatsApp for delivery time and cost.
Get a price or a custom size
Tell us the quantity and delivery location. We can also build it to your length.
