Bain marie with five separate heated wells for GN 1/1 pans, each with its own thermostat and drain valve. Hold soups, sauces and delicate dishes at different temperatures on one 1.8 m station, built in AISI 304 stainless steel by ALPHA.
- Capacity: 5 × GN 1/1, wells 200 mm deep
- Control: 5 separate thermostats
- Power: 850 W per well (about 4.25 kW total)
- Size: 1800 × 700 × 900 mm (W × D × H)

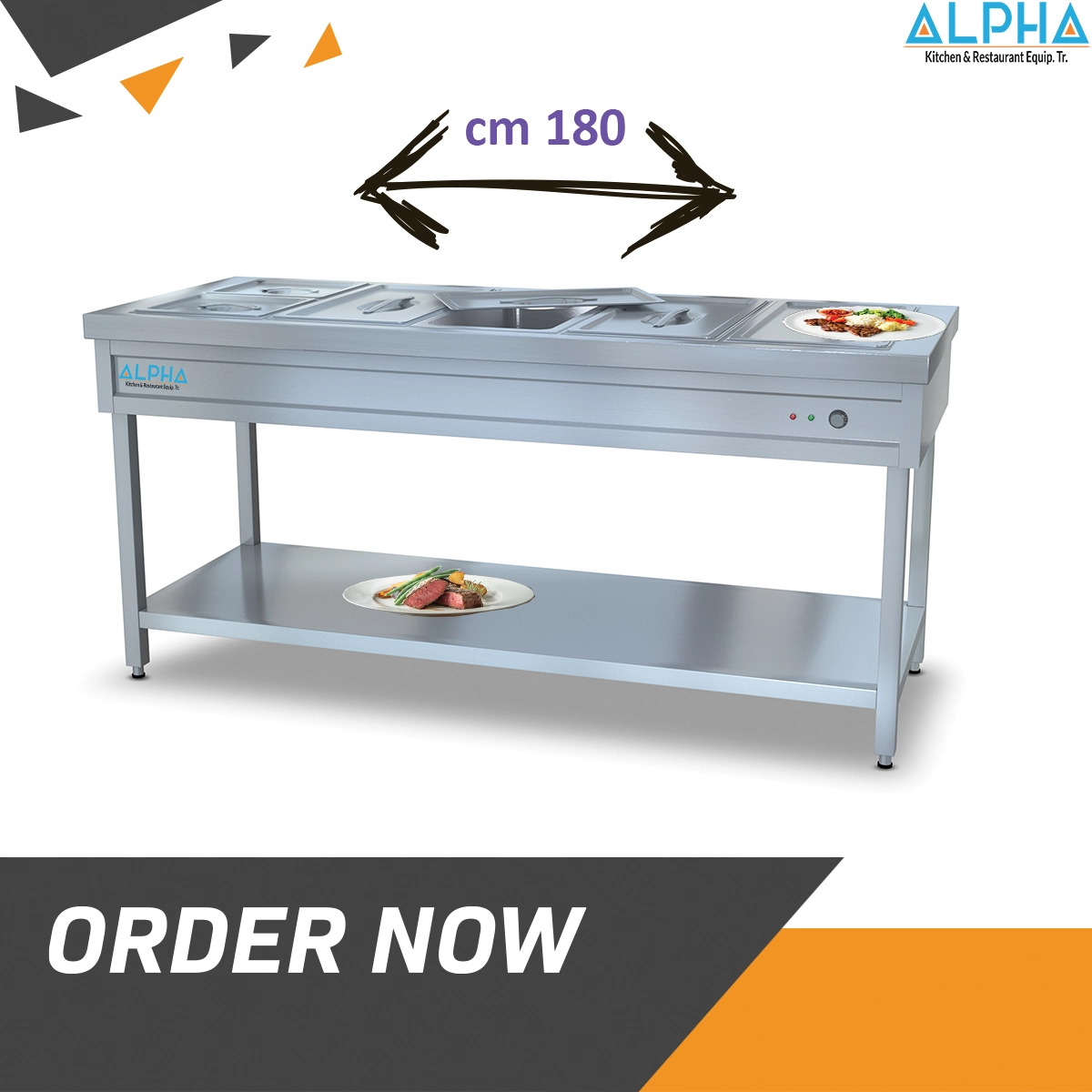

Bain Marie 5 GN with 5 Separate Heated Wells
Most bain maries heat every pan from one shared water tank, so one temperature has to suit every dish. This 5 GN bain marie has five separate deep-drawn wells, each with its own thermostat, so soup can stay very hot in one well while a delicate sauce or dessert stays gently warm in the next. Water and flavours never mix between wells.
Each well takes a GN 1/1 pan up to 200 mm deep and has its own stainless steel drain valve for quick cleaning. The 1.8 m freestanding unit is built in matt AISI 304 stainless steel on a tubular frame with a push handle, by ALPHA Kitchen Factory in the UAE.
Technical specifications
| Type | Electric bain marie with 5 separate heated wells |
| Capacity | 5 × GN 1/1 pans, wells 200 mm deep |
| Heating zones | 5, each with its own thermostat |
| Power | 850 W per well (about 4.25 kW total) |
| Drain | Individual stainless steel ball valve on each well |
| Dimensions | 1800 × 700 × 900 mm (W × D × H) |
| Material | AISI 304 stainless steel, matt finish |
| Frame | Tubular frame with push handle |
| Manufacturer | ALPHA Kitchen Factory, UAE |
Best for
- Hotel buffets: dishes that need different holding temperatures side by side.
- Hospitals and institutions: food types kept fully separate.
- Premium catering: delicate items held gently without overcooking.
Choose your model
Prefer one shared water bath? See the bain marie 4 GN 1/1 or the open-top bain marie 6 GN 1/1. For a glass sneeze guard and heated storage below, see the 5 GN bain marie with glass top and cabinet. As a fabricator, we can also build a bain marie to your exact length.
Delivery, warranty and support
- Free delivery to all 7 emirates.
- Shipping across the GCC, including Saudi Arabia and Qatar.
- 1-year warranty, with service from our UAE technicians.
- See it at our factory showroom in Ajman.
Frequently asked questions
What is the advantage of separate wells?
Each pan sits in its own heated well with its own thermostat, so you can hold every dish at the temperature it needs, and water or flavours never mix between dishes.
How deep can the pans be?
Each well takes a GN 1/1 pan up to 200 mm deep.
How is it cleaned?
Each well has its own stainless steel drain valve, so you can empty and clean the wells one by one.
What is the power consumption?
850 W per well, about 4.25 kW with all five wells on.
Do you deliver outside the UAE?
Yes. We ship to Saudi Arabia, Qatar and the rest of the GCC. Send us your city on WhatsApp for delivery time and cost.
Get a price or a custom size
Tell us the number of wells, your counter length and delivery location.
