Stainless Steel Drainage Channel Grating System

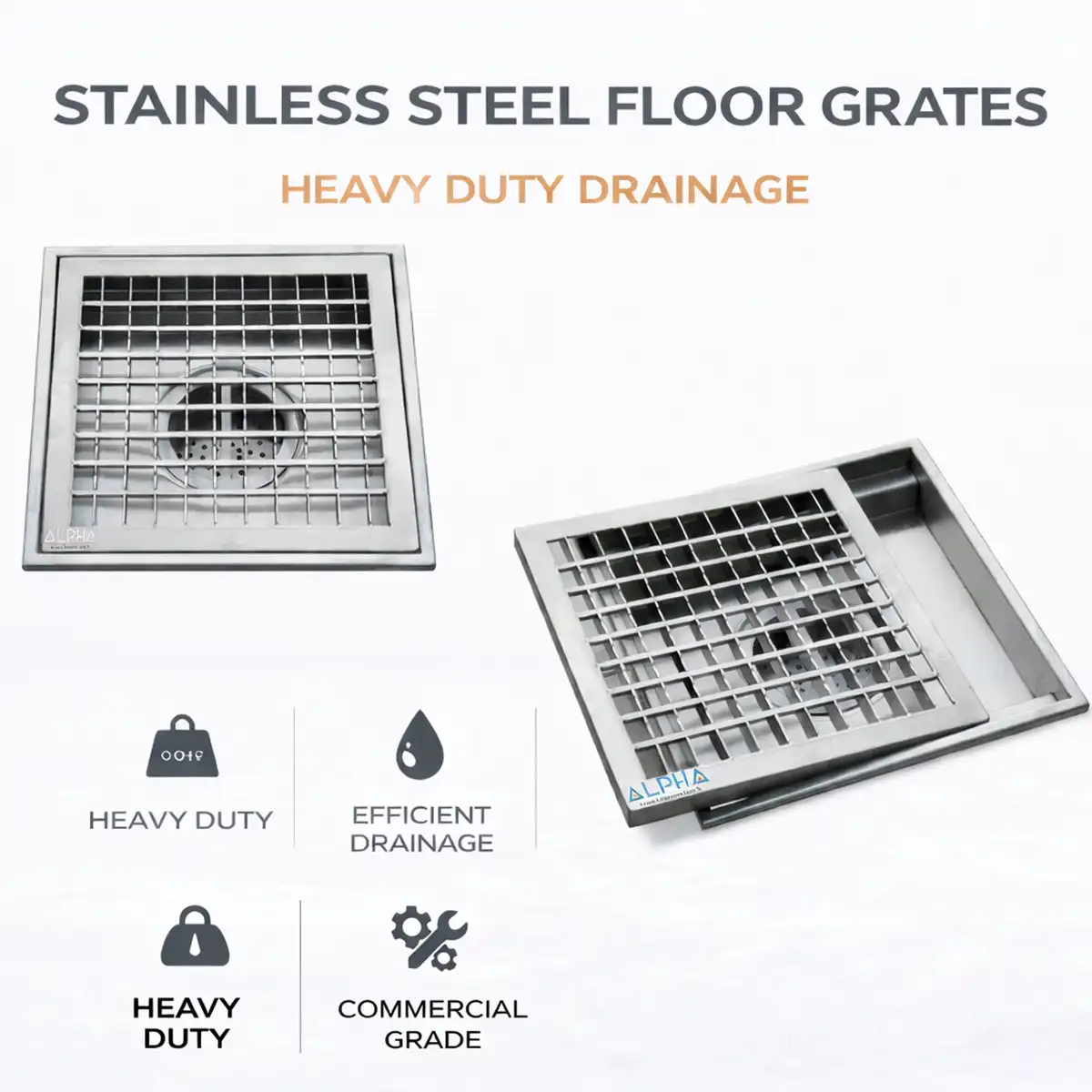

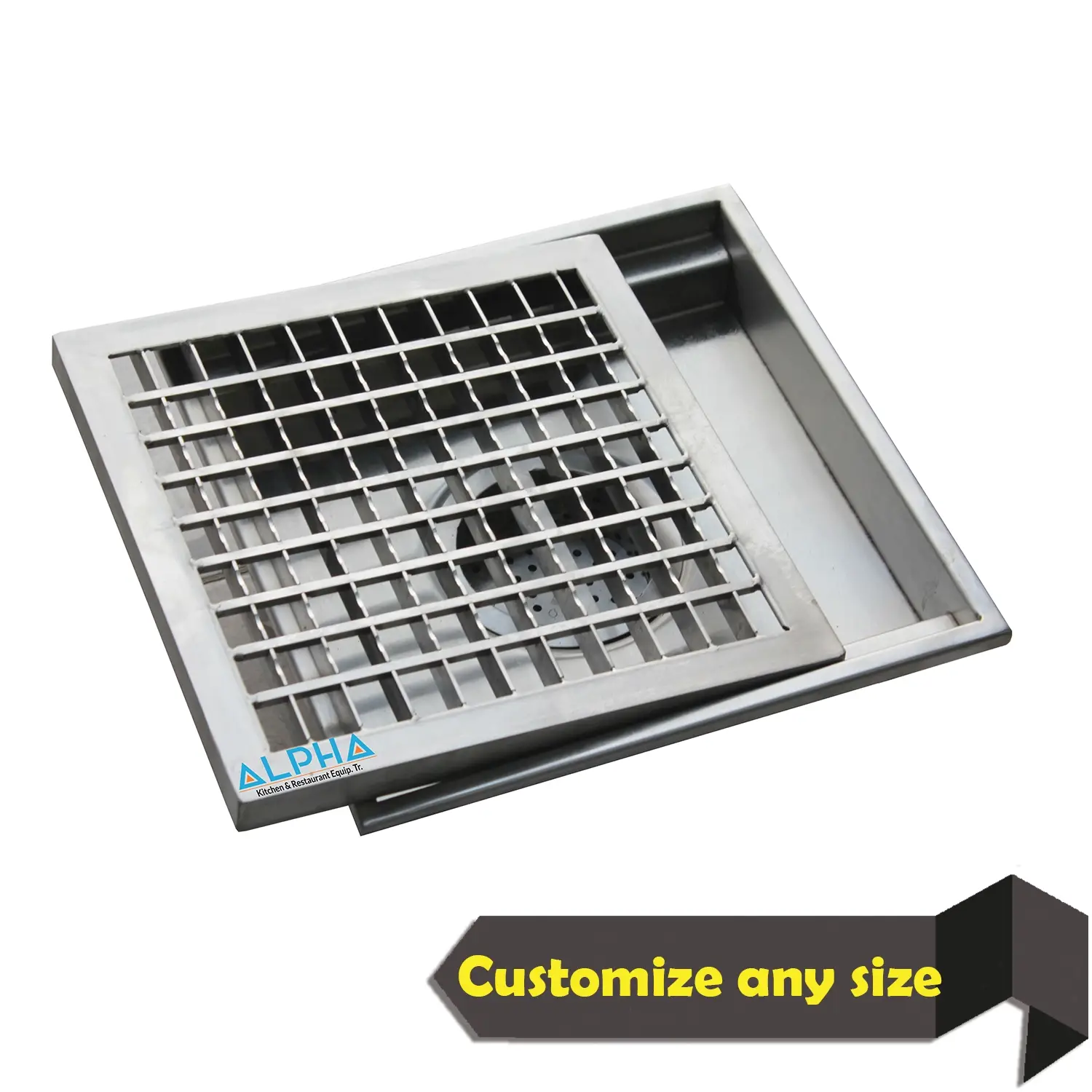

The stainless steel drainage channel, removable grating cover, welded drain body, outlet position, floor installation area, and brushed stainless steel finish. Images are for illustration purposes only. Final size, depth, outlet size, grating type, and stainless steel grade can be confirmed before quotation.
Key Specs Summary
| Specification | Details |
|---|---|
| Product Type | Commercial stainless steel drainage channel grating system |
| Main Use | Floor drainage for wet commercial kitchen areas |
| Grating | Removable stainless steel grating cover for cleaning and maintenance |
| Material Options | AISI 304, AISI 316, or AISI 430 options can be reviewed based on project requirements |
| Applications | Dishwashing rooms, pot wash areas, butcher shops, food production areas, and wet preparation zones |
| Customization | Custom sizes available upon request. |
Call WhatsApp Request Quotation
The stainless steel drainage channel grating system is designed for commercial kitchen floors where water, cleaning flow, and hygiene control matter. It helps collect wastewater from washing areas, dishwashing zones, preparation rooms, butcher shops, and food production areas.
This drainage system gives kitchens a practical floor drain solution with a removable stainless steel grating. Staff can remove the cover for cleaning, inspection, and maintenance. As a result, the floor area stays cleaner and easier to manage during daily operation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Stainless Steel Drainage Channel Grating System |
| Product Category | Stainless Steel Fabrication |
| Supplier | ALPHA Kitchen Factory |
| Specification Marker | ALPHA project-ready specification for commercial kitchen drainage fabrication |
| Construction | Stainless steel drainage channel with removable grating cover |
| Material Options | AISI 304, AISI 316, or AISI 430 stainless steel options can be reviewed based on site requirement |
| Grating Type | Removable stainless steel grating for cleaning and access |
| Channel Design | Fabricated drainage body for floor water collection |
| Outlet Position | Can be prepared based on site drainage connection requirement |
| Outlet Size | To be confirmed according to project drainage requirement |
| Length | 300 mm |
| Width | 300 mm |
| Depth | 100 mm |
| Finish | Brush finish |
| Main Use | Floor drainage, water collection, washing area drainage, dishwashing area drainage, and wet kitchen floor management |
Best For
- Restaurant kitchens with wet preparation areas.
- Hotel kitchens and dishwashing rooms.
- Cloud kitchens with floor washing requirements.
- Catering kitchens and central kitchens.
- Butcher shops, meat rooms, and fish preparation areas.
- Bakery washing areas and production kitchens.
- Food factories and food processing areas.
- Commercial cleaning and wash-down zones.
Factory-Made Stainless Steel Construction
This drainage channel grating system is fabricated for heavy-duty commercial kitchen floor use. The stainless steel channel body, removable grating cover, cleanable design, and project-based outlet layout make it suitable for wet areas in restaurants, catering kitchens, butcher shops, dishwashing rooms, and food production areas.
Removable Grating Cover
The removable grating cover gives staff easy access to the channel. This helps with cleaning, inspection, and removal of food particles or dirt. It also supports better hygiene in busy wet kitchen areas.
Stainless Steel Drain Body
The drain body is made from stainless steel for professional foodservice environments. Stainless steel is easy to clean and suitable for areas exposed to water, cleaning chemicals, and daily wash-down activity.
Floor Water Collection
The channel helps collect water from preparation, washing, and dishwashing areas. It supports better water control on kitchen floors and helps reduce standing water when installed with proper floor slope.
Custom Outlet Position
The outlet position can be planned according to the site drainage connection. This matters because every kitchen floor layout is different. Correct outlet planning helps simplify installation and improves drainage performance.
Project-Based Fabrication
Drainage channels are often site-specific. ALPHA can review the required length, width, depth, grating type, outlet location, and stainless steel grade before quotation. This helps match the system to the actual kitchen layout.
Suitable for Wet Commercial Areas
This system is useful in areas where water is used every day. Common locations include pot wash areas, dishwashing rooms, meat rooms, vegetable washing zones, and floor cleaning areas.
Available Variations
| Option | Best Use | Main Advantage | |
|---|---|---|---|
| Drainage Channel with Standard Grating | General commercial kitchen floor drainage | Practical removable cover for cleaning | |
| Drainage Channel with Heavy-Duty Grating | High-traffic kitchens and production areas | Better support for heavier daily use | |
| Long Linear Drainage Channel | Large washing areas and dishwashing rooms | Collects water along a longer floor section | |
| Custom Outlet Drainage Channel | Projects with specific drainage connection points | Can match site drainage layout |
Installation, Clearance, and Usage Notes
- Confirm the required channel length, width, depth, and outlet position before fabrication.
- Check the site floor slope before installation.
- Confirm the drainage outlet size and connection direction with the contractor.
- Choose the grating strength based on expected foot traffic and equipment movement.
- Use AISI 316 stainless steel option for more demanding wet or corrosive environments.
- Keep the grating removable for cleaning and maintenance access.
- Clean the channel regularly to avoid food waste buildup.
- Do not block the outlet with solid waste or packaging material.
- Coordinate installation with floor finishing, waterproofing, and drainage contractor work.
- Final fabrication should follow approved site measurements.
Delivery and Support in UAE
ALPHA supplies stainless steel drainage channel grating systems for restaurants, hotels, cafés, catering kitchens, central kitchens, butcher shops, dishwashing rooms, and food production areas across the UAE. Product availability, delivery timing, and project requirements can be confirmed before quotation.
GCC Export Support
ALPHA supplies commercial kitchen equipment from the UAE and can support selected export orders to Qatar and Saudi Arabia. Availability, packing, delivery terms, and shipping cost depend on the product type, quantity, and destination.
Warranty and After-Sales Note
This product is supplied with after-sales support in the UAE. Warranty coverage depends on the confirmed quotation and final supplied specification. Damage caused by incorrect civil installation, poor floor slope, blocked outlet, misuse, impact, harsh chemicals, site handling damage, or unauthorized modification is not covered.
Related Commercial Kitchen Equipment
- Stainless Steel Work Table
- Stainless Steel Sink Table
- Pot Wash Sink
- Stainless Steel Wall Shelf
- Stainless Steel Fabrication Products
Explore Related Categories
- Stainless Steel Fabrication
- Stainless Steel Sinks
- Stainless Steel Work Tables
- Commercial Kitchen Equipment
FAQ
What is a stainless steel drainage channel grating system used for?
It is used to collect and direct floor water in commercial kitchens, dishwashing rooms, washing areas, butcher shops, and food production areas.
Can the drainage channel size be customized?
Yes. ALPHA can fabricate custom length, width, depth, outlet position, outlet size, and grating design based on project requirements.
Is the grating removable?
Yes. The grating designed to be removable for cleaning, inspection, and maintenance access.
Which stainless steel grade is suitable for drainage channels?
AISI 304 commonly used for commercial kitchen fabrication. 316 can be reviewed for more demanding wet or corrosive environments. AISI 430 can be reviewed for selected budget-sensitive applications.
Does the floor slope affect drainage performance?
Yes. Correct floor slope is important. The drainage channel works best when the civil floor slope directs water toward the channel and the outlet is properly connected.
Is this suitable for dishwashing rooms?
Yes. It is suitable for dishwashing rooms, pot wash areas, vegetable washing zones, and other wet commercial kitchen areas.
Can ALPHA deliver this product outside the UAE?
So Selected export orders to Qatar and Saudi Arabia can be supported. Packing, delivery terms, cost, and availability depend on the final order details and destination.
