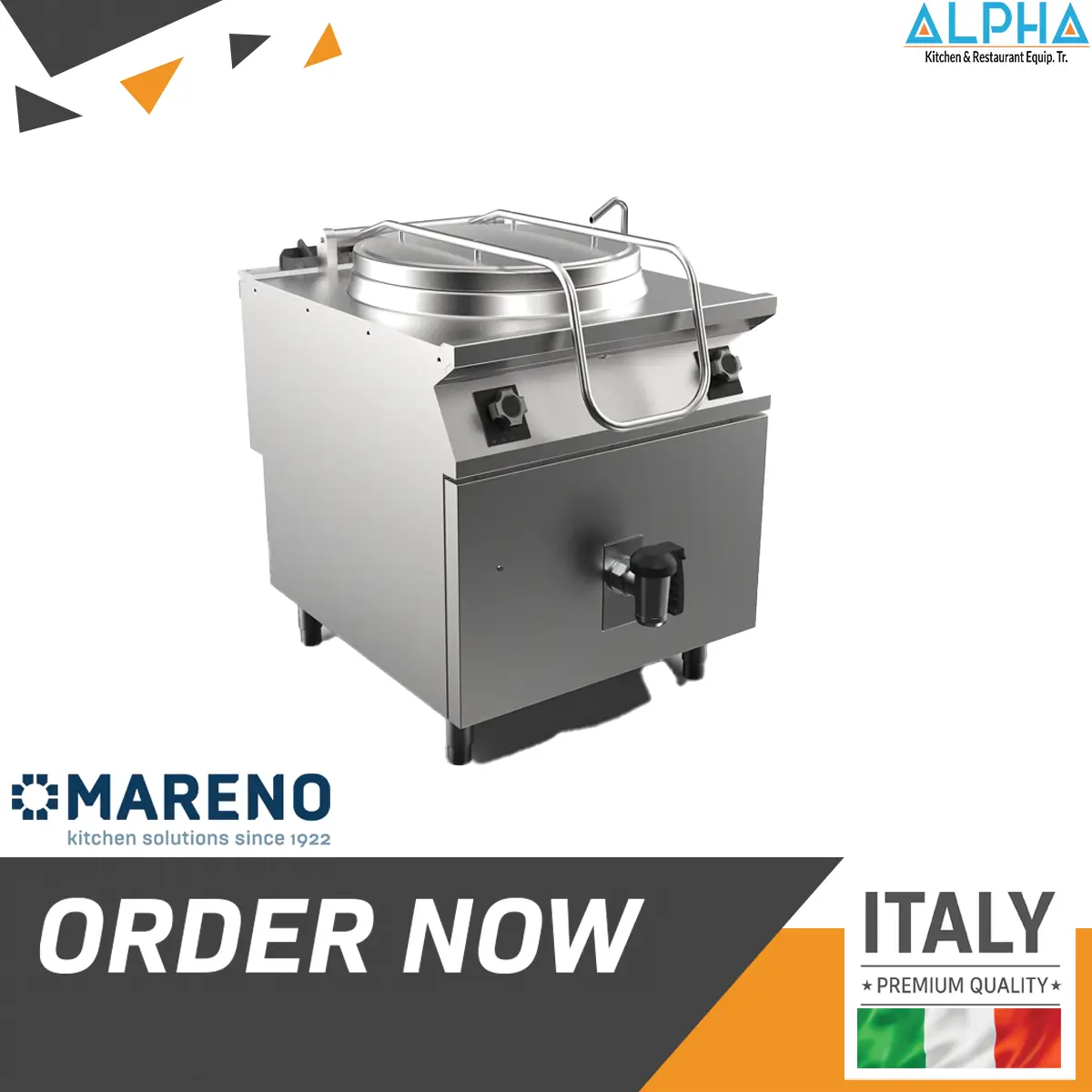

Electric Boiling Pan 150 L – Model PE98ED15 (Mareno Italy)
The Mareno PE98ED15 Electric Boiling Pan is a freestanding, high-performance cooking unit with direct electric heating and a 150-litre capacity. Crafted entirely in AISI 304 stainless steel with a 316L stainless steel base, it ensures exceptional hygiene, durability, and thermal efficiency — ideal for restaurants, hotels, and catering kitchens across the UAE.Main Features & Construction
- Made in Italy by Mareno – Ali Group.
- Direct electric heating system with a 12 kW element positioned outside the tank for even heat distribution.
- Tank capacity 150 L, diameter Ø 600 mm with insulated walls and polished 316L bottom for anti-corrosion protection.
- Cold or hot water filling via solenoid valves with selector control and 1 ½” safety drain tap (heat-proof handle).
- Counter-balanced lid with 90° opening and ergonomic front grip handle.
- Energy regulator with integral indicator lights for heating and operation status.
- Equipped with a safety thermostat with manual reset and IPX5 water-resistance rating.
- Mounted on stainless-steel height-adjustable feet for level installation.
Technical Specifications
| Model | PE98ED15 |
| Range Code | M1-90 (MAMC0005210) |
| Function | Electric Boiling Pan – Direct Heating |
| Width (mm) | 800 |
| Depth (mm) | 920 |
| Height (mm) | 900 |
| Weight (kg) | 126 |
| Volume (m³) | 1 |
| Electrical Power | 12 kW |
| Voltage | 400 V / 3 Phase / 50-60 Hz (VAC400-3N) |
| Tank Capacity | 150 L (Ø 600 mm) |
| Cooking Zones | 1 × 12 kW zone |
| IP Protection | IPX5 |
| Cold Water Inlet | Ø ½ – H = 100 mm |
| Hot Water Inlet | Ø ½ – H = 100 mm |
| Drain Connection | 1 ½″ Safety Drain Tap |
| Material | AISI 304 Stainless Steel Body / AISI 316L Tank Base |
| Insulation | High-density thermal insulation panels for energy efficiency |
| Lid Type | Counter-balanced 90° opening stainless-steel lid |
Performance & Applications
Engineered for large-batch cooking of soups, sauces, and stock, the PE98ED15 ensures uniform heat transfer and energy savings. Its premium construction allows flush installation with other cooking line units, maintaining seamless hygiene and workflow in professional kitchens.Mareno PE98ED15 – 150 L Electric Boiling Pan with direct heating, 12 kW 400 V 3-phase, AISI 304/316L stainless steel, IPX5 protection. Ideal for UAE commercial kitchens and catering projects.
