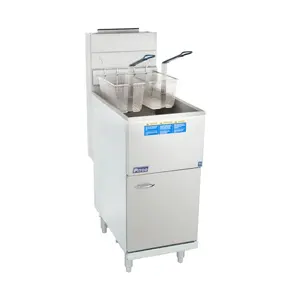

Pitco 35C Gas Fryer With a width of just 15¹⁄₈ inches, this Pitco 35C+S commercial fryer is ideal for foodservice operations that have a small footprint but need to meet a high-volume demand for fried foods. It can hold 35 to 40 pounds of oil in its stainless steel tank, which is welded and peened with a smooth, quick-cleaning finish. Ensuring operators can fry breaded foods without worrying about crumbs or sediment burning and damaging the oil quality, the unit has a deep cold zone and a temperature range of 200 to 400 degrees Fahrenheit.

A front-located 1¹⁄₄-inch NPT drain valve and drain extension ensure the tank drains quickly into the appropriate container, while a clean-out rod removes any remaining crumbs or sediment. The Pitco 35C+S fryer operates safely and efficiently with an integrated gas control valve and a number of other standard features. Mounted in the heat exchanger tubes, the heat baffles are made from a long-lasting alloy stainless steel and provide heat and combustion with maximum efficiency. A standing pilot light provides an instant flame, but gas flow is automatically shut off if the pilot goes out or if the high-temperature limit is exceeded.

Product Details

• 35- to 40-lb. oil capacity
• Welded and peened stainless steel tank has a smooth finish that facilitates cleaning
• Stainless steel heat baffles are mounted in the exchanger tubes to efficiently heat the oil
• Standing pilot light is ready when heat is needed
• 2 nickel-plated mesh wire baskets
• Removable hanger holds the baskets out of oil
• Stainless steel front and door with a galvanized steel rear and sides
• 1¹⁄₄-in. NPT drain in the front efficiently drains to facilitate cleaning
• Drain line clean-out rod
• 6-in. adjustable legs
• 90,000 BTU

Product Features

Control System

• Temperature range: 200-400 degrees F
• Gas control valve acts as a pilot valve, gas filter, main valve, and pressure regulator
• Gas control valve prevents gas from flowing to the main burner if the pilot goes out
• Temperature-limit switch shuts off gas flow if the temperature exceeds the maximum limit

Dimensions & Utilities

• 15¹⁄₈ in. W x 30⁹⁄₃₂ in. D x 47⁹⁄₃₂ in. H
• Heated by natural gas
• 26.3 kW

Fryer, natural gas, floor model, 35-40 lb. oil capacity, millivolt control, stainless steel tank, door & front, 90,000 BTU, CSA, NSF, CE
