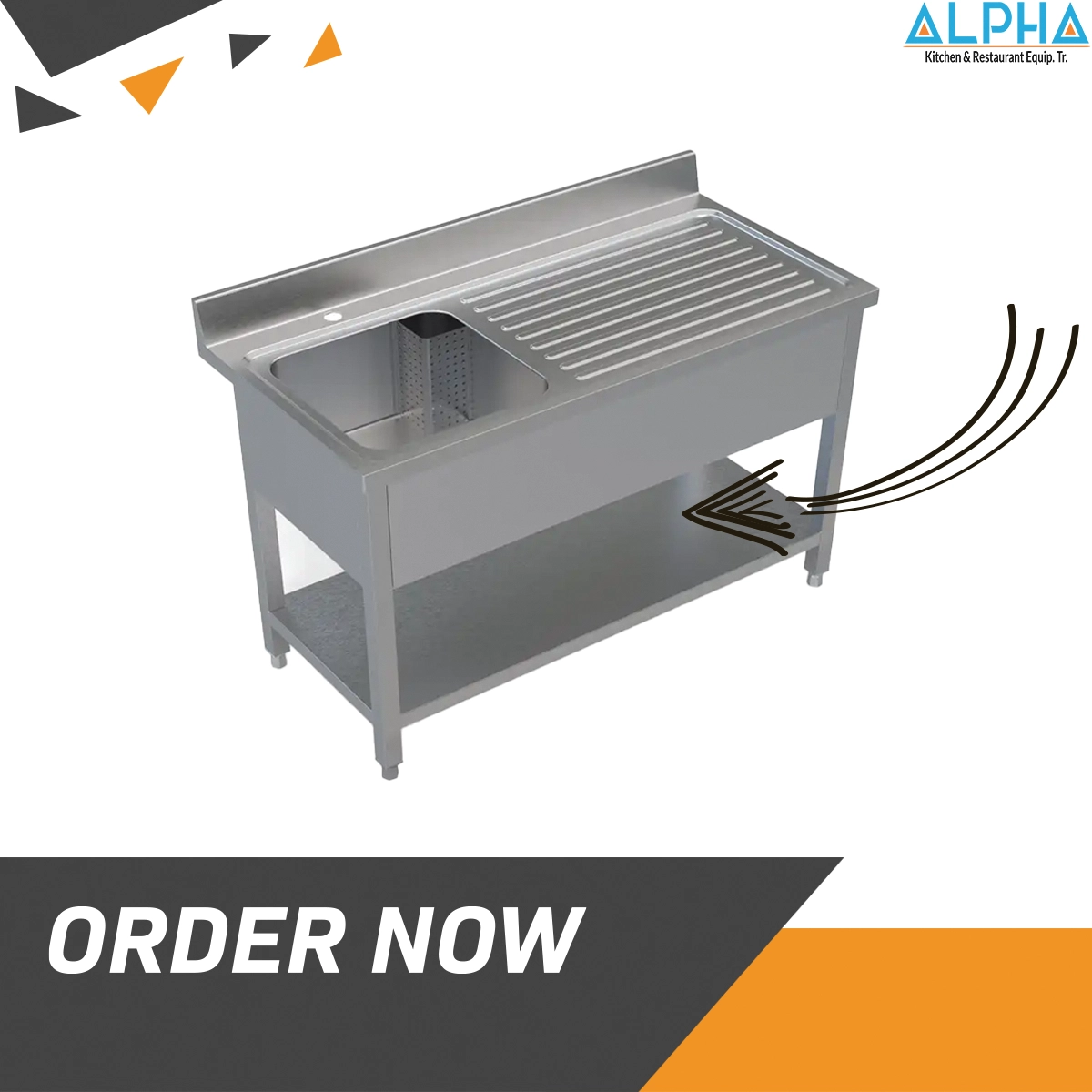

Single Bowl Stainless Steel Sink with Right-Side Drain Board – 120 x 70 cm
This single bowl stainless steel sink with drain board provides a practical washing and draining station for commercial kitchens. It combines one wash basin, a right-side drain board, rear backsplash, and lower undershelf in one compact unit.
Made from AISI 304 18/10 stainless steel, this sink is suitable for restaurants, cafés, bakeries, hotels, catering kitchens, cloud kitchens, and food preparation areas. In addition, the drain board helps staff place rinsed utensils, containers, or ingredients beside the sink during daily work.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Single Bowl Stainless Steel Sink with Right-Side Drain Board |
| Product Category | Commercial Stainless Steel Sinks |
| Supplier | ALPHA Kitchen Factory |
| Fabrication Reference | ALPHA fabrication reference for commercial sink and drain board production |
| Material Grade | AISI 304 18/10 stainless steel |

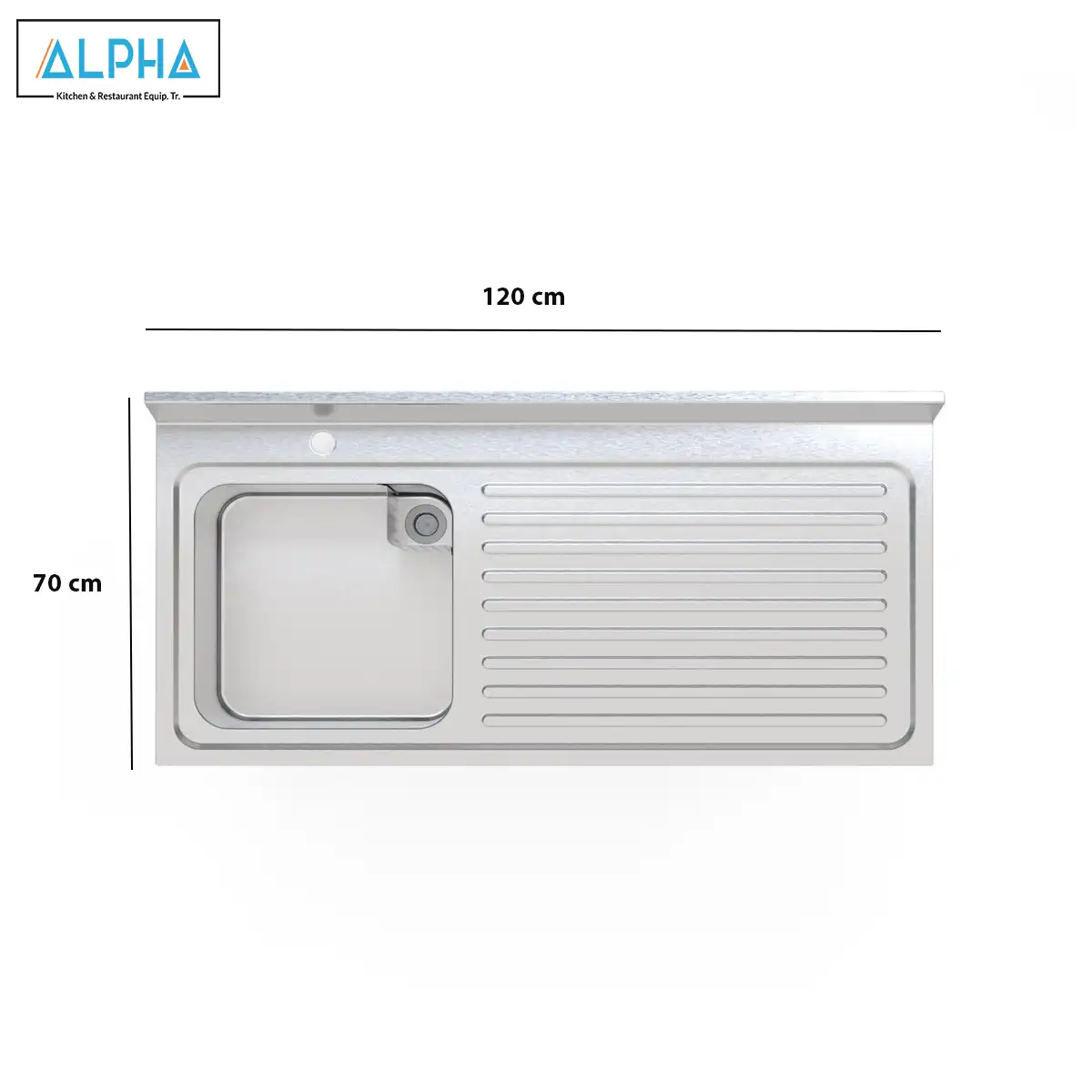

| Overall Dimensions | 1200 mm length x 700 mm depth |
| Sink Configuration | Single bowl sink / washbasin |
| Drain Board Position | Right-side drain board |
| Backsplash | Rear stainless steel backsplash |
| Lower Storage | Stainless steel undershelf |
| Faucet / Mixer Tap | Not included |
| Final Height | Confirm before quotation |
| Main Application | Washing, rinsing, draining, wet preparation, and commercial kitchen workflow support |
Call WhatsApp Request Quotation
Which Sink Size Is Right for Your Kitchen?
| Model | Overall Size | Bowl | Best For |
|---|---|---|---|

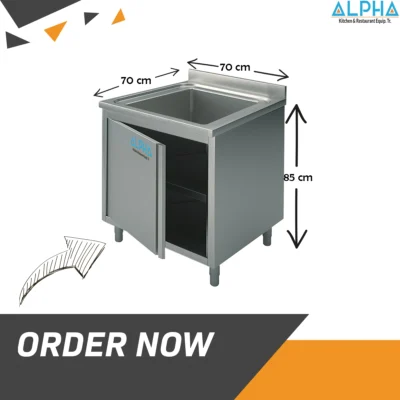

| Single Bowl 80×70 | 800×700 mm | Single | Compact stations, back-of-bar |
| Single Bowl + Drainer 100×70 | 1000×700 mm | Single + drainer | Small prep areas, pass kitchens |
| Single Bowl + Drainer 120×70 | 1200×700 mm | Single + drainer | Standard prep and veg wash |

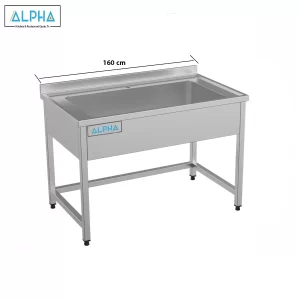

| Pot Wash Sink 120 | 1200×700 mm | Deep pot bowl | Heavy pot and tray washing |
| Double Bowl Sink 160 | 1600×700 mm | Two bowls | Busy dishwash and prep combined |
Key Specs Summary
| Buying Point | Details |
|---|---|
| Commercial Sink Layout | Single washing bowl with right-side draining area |
| Hygienic Material | AISI 304 18/10 stainless steel for professional kitchen use |
| Working Size | 120 x 70 cm footprint for wall-side wet preparation areas |
| Wall Protection | Rear backsplash helps control splashes behind the sink |
| Extra Storage | Lower undershelf keeps selected items below the working area |
| Customization | Custom sizes available upon request. |
Best For
- Restaurant kitchens that need compact washing and draining space.
- Cafés and bakeries that require a practical wet preparation station.
- Hotel kitchens and catering facilities.
- Cloud kitchens with controlled floor space.
- Vegetable preparation and rinsing zones.
- Food production areas that need stainless steel washing equipment.
Factory-Made Stainless Steel Sink Construction
This single bowl sink with right-side drain board is fabricated for daily commercial kitchen use. Its AISI 304 stainless steel construction, rear backsplash, lower undershelf, and practical draining area support washing and rinsing tasks in professional foodservice environments.
Single Bowl Washing Area
The single bowl provides a dedicated area for washing and rinsing tasks. Therefore, the unit works well in preparation sections that need one practical basin without using space for an additional bowl.
Right-Side Drain Board
The drain board sits on the right side of the basin. As a result, staff can place washed utensils, containers, or rinsed food items beside the sink while excess water drains away from the working area.
AISI 304 Stainless Steel
AISI 304 18/10 stainless steel supports regular cleaning in professional kitchens. Moreover, it suits wet areas where hygiene and corrosion resistance matter during daily operation.
Rear Backsplash for Wall-Side Installation
The rear backsplash helps limit splashes behind the sink. Consequently, staff can maintain the wall-side washing zone more easily during routine cleaning.
Lower Undershelf for Practical Storage
The lower undershelf gives staff open storage below the sink. It can support selected containers, buckets, or cleaning accessories according to the kitchen workflow and hygiene plan.
Faucet Selection Flexibility
This sink does not include a faucet or mixer tap. Therefore, the buyer can select the correct tap type according to the plumbing position, water pressure, and intended use.
Single Bowl Sink Selection Guide
| Option | Best Use | Main Advantage |
|---|---|---|
| Single Bowl Sink with Drain Board | Washing areas that need space for draining beside the bowl | Combines rinsing and draining in one compact unit |
| Single Bowl Sink without Drain Board | Very compact washing points | Uses less working-line length |
| Double Bowl Sink | Areas that need separate washing and rinsing bowls | Supports two-basin washing workflow |
| Sink Cabinet with Storage | Sites that need enclosed storage below the washing area | Conceals stored items under the sink |
Installation and Usage Notes
- Confirm the installation space against the 1200 x 700 mm footprint before ordering.
- Confirm final height, sink bowl dimensions, drain position, and plumbing connection before production.
- Allow wall-side clearance for water supply and waste connections.
- Select a compatible faucet or mixer tap separately because it is not included.
- Use the backsplash side against the wall for better splash control.
- Keep the drain board clear during use so water can flow away efficiently.
- Clean the sink, drain board, backsplash, and undershelf regularly.
- Use non-abrasive products suitable for AISI 304 stainless steel.
Delivery and Support in UAE
ALPHA supplies stainless steel sinks with drain boards for restaurants, cafés, bakeries, hotels, catering kitchens, cloud kitchens, and food preparation projects across the UAE. In addition, ALPHA can confirm final fabrication details, delivery timing, and project requirements before quotation.
For sink layout, plumbing position, or project quantity, request a quotation from ALPHA with the required application and site details.
GCC Export Support
ALPHA can support selected export orders from the UAE to Qatar and Saudi Arabia. However, packing, delivery terms, shipping cost, and availability depend on the product quantity and destination.
Warranty and After-Sales Note
ALPHA provides after-sales support in the UAE according to the confirmed quotation and final fabrication specification. However, warranty coverage does not include damage caused by incorrect plumbing, misuse, impact, unsuitable chemicals, poor site handling, or unauthorized modification.
Related Commercial Kitchen Equipment
Explore Stainless Steel Sink Solutions
- Commercial Stainless Steel Sinks
- Stainless Steel Fabrication
- Commercial Kitchen Washing Equipment
FAQ
What is the single bowl stainless steel sink with drain board used for?
This sink supports washing, rinsing, and draining tasks in professional kitchens. In addition, the right-side drain board provides space beside the washing bowl.
What are the dimensions of this sink unit?
The confirmed footprint is 1200 mm length x 700 mm depth. However, confirm the final height and bowl dimensions before quotation approval.
What stainless steel grade does this sink use?
The product uses AISI 304 18/10 stainless steel, which suits regular cleaning and wet commercial kitchen areas.
Does this sink include a drain board?
Yes. This model includes a right-side drain board beside the single washing bowl.
Does the product include a backsplash and undershelf?
Yes. The product includes a rear backsplash and a lower undershelf for practical commercial kitchen use.
Does the sink include a faucet or mixer tap?
No. The faucet or mixer tap is not included. Therefore, select a compatible tap according to the site plumbing requirement.
Can ALPHA make this sink in another size?
Yes. ALPHA can review custom dimensions, bowl layout, drain board arrangement, and fabrication details according to the project requirement.
Can ALPHA supply this sink across the UAE?
Yes. ALPHA supplies stainless steel kitchen equipment across the UAE, subject to confirmed fabrication details, delivery requirements, and quotation terms.
