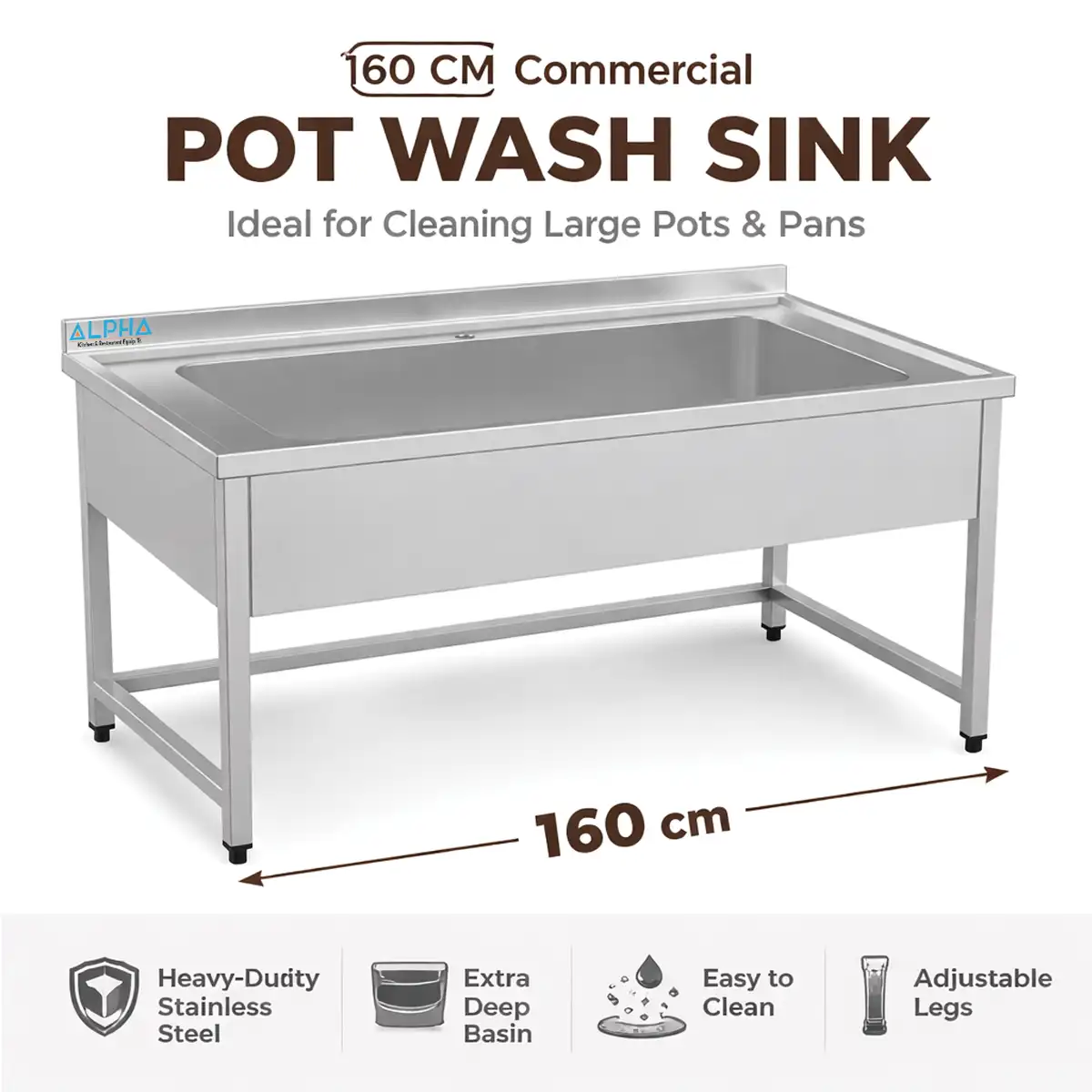

Stainless Steel Pot Wash Sink 160 cm
The stainless steel pot wash sink 160 cm is a heavy-duty washing station for oversized cookware, baking trays, GN containers, oven racks, BBQ grills, stock pots, and bulk preparation equipment. It gives commercial kitchens a large single-bowl washing area without a side drain board.
ALPHA supplies this pot wash sink for central kitchens, hotels, bakeries, catering kitchens, restaurants, butcheries, cloud kitchens, and food production areas across the UAE. In addition, the wide bowl helps staff soak and wash large items that do not fit inside standard kitchen sinks.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Stainless Steel Pot Wash Sink 160 cm |
| Product Type | Commercial single-bowl pot washing sink |
| Product Category | Commercial Stainless Steel Sinks |
| Brand | ALPHA Brand |
| Fabrication Reference | ALPHA fabrication reference for commercial pot wash sink production |
| Overall Dimensions | 1600 mm width x 700 mm depth x 850 mm height, plus 100 mm rear splashback |
| Bowl Quantity | 1 extra-wide deep washing bowl |
| Bowl Dimensions | Approx. 1450 mm width x 500 mm depth x 350–400 mm bowl depth |
| Material Grade | AISI 304 stainless steel |
| Construction | Fully welded rigid stainless steel frame |
| Drain Board | Without drain board for maximum bowl width |
| Legs | 40 mm square or round tube legs with adjustable feet |
| Installation Detail | Rear legs inset 100 mm for wall-side pipe clearance |
| Main Application | Soaking and washing large pots, oven racks, BBQ grills, GN containers, bakery trays, and bulk kitchen equipment |
Call WhatsApp Request Quotation
Key Specs Summary
| Buying Point | Details |
|---|---|
| Maximum Bowl Width | Approx. 1450 mm internal width for oversized cookware and trays |
| Commercial Size | 160 x 70 x 85 cm body with 10 cm rear splashback |
| Deep Soak Capacity | 350–400 mm bowl depth supports soaking and heavy washing tasks |
| Material Grade | AISI 304 stainless steel for demanding commercial wet areas |
| Pipe-Friendly Installation | Rear legs are inset 100 mm for wall-side pipe clearance |
| Custom Fabrication | Custom sizes available upon request. |
Best For
- Central kitchens washing bulk cookware and large containers.
- Hotels cleaning banquet trays, oven racks, and stock pots.
- Bakeries washing 60 x 40 cm and 60 x 80 cm baking trays.
- Catering kitchens handling large GN pans and food containers.
- Restaurants with heavy pot wash requirements.
- Butcheries and food production areas needing a deep soak station.
Extra-Wide Soaking and Washing Capacity
The 160 cm pot wash sink is the largest model in this linked pot wash range. Therefore, it suits kitchens that need maximum single-bowl washing width for oversized equipment.
Approx. 145 cm Internal Bowl Width
The extra-wide bowl allows staff to soak large trays, stock pots, oven racks, BBQ grills, and full-size containers. As a result, the unit handles heavy washing tasks that smaller sinks cannot manage comfortably.
Deep Bowl for Heavy Cleaning
The 350–400 mm bowl depth supports soaking before scrubbing. In addition, it gives staff better control when cleaning bulky kitchen items.
AISI 304 Stainless Steel Build
The AISI 304 stainless steel body supports regular cleaning in professional wet areas. Moreover, it suits kitchens that use degreasers and need a durable stainless steel washing station.
Fully Welded Rigid Frame
The fully welded frame creates a strong structure for daily operation. Consequently, the sink remains practical for heavy cookware, large water loads, and busy wash-up sections.
Rear Pipe Clearance
The rear legs are inset by 100 mm. This detail helps the sink sit closer to the wall when pipes, coving, or wall-side services run behind the unit.
Pot Wash Sink Size Options
| Model | Best Use | View Product |
|---|---|---|
| Pot Wash Sink 100 cm | Compact kitchens needing a deep pot wash bowl | View Pot Wash Sink 100 cm |
| Pot Wash Sink 120 cm | Standard pot washing areas with wider washing capacity | View Pot Wash Sink 120 cm |
| Pot Wash Sink 140 cm | Medium to busy kitchens washing trays, grates, and large pots | View Pot Wash Sink 140 cm |
| Pot Wash Sink 160 cm | Maximum bowl width for large cookware, racks, and bulk washing | Current model |
Installation and Usage Notes
- Confirm the installation area against the 1600 x 700 x 850 + 100 mm overall size.
- Check water inlet, waste outlet, pre-rinse spray, and grease-trap requirements before installation.
- Place the rear splashback against the wall where splash control is required.
- Use the inset rear-leg clearance to support wall-side pipework where needed.
- Keep enough front clearance for loading stock pots, oven racks, trays, and large containers.
- Select a sink with drain board when the operation needs side drying space.
- Clean stainless steel surfaces with suitable non-abrasive products.
Delivery and Support in UAE
ALPHA supplies stainless steel pot wash sinks for restaurants, hotels, bakeries, cloud kitchens, catering kitchens, butcheries, central kitchens, and food production projects across the UAE. In addition, ALPHA can confirm the required sink size, delivery timing, and project requirements before quotation.
For pot wash sink selection or project supply, request a quotation from ALPHA.
GCC Export Support
ALPHA can support selected export orders from the UAE to Qatar and Saudi Arabia. However, packing, delivery terms, shipping cost, and availability depend on the required quantity and destination.
Warranty and After-Sales Note
ALPHA provides after-sales support in the UAE according to the confirmed quotation and final fabrication specification. However, warranty coverage does not include damage caused by incorrect plumbing, misuse, impact, unsuitable chemicals, poor site handling, overloading beyond the approved use, or unauthorized modification.
Related Commercial Kitchen Sinks
- Stainless Steel Pot Wash Sink 100 cm
- Stainless Steel Pot Wash Sink 120 cm
- Stainless Steel Pot Wash Sink 140 cm
- Restaurant Double Bowl Stainless Steel Sink 160 x 70 cm
Explore Commercial Stainless Steel Sinks
FAQ
What is the Pot Wash Sink 160 cm used for?
This sink is used for soaking and washing large stock pots, baking trays, GN containers, oven racks, BBQ grills, and oversized kitchen equipment.
What are the dimensions of this pot wash sink?
The sink measures 1600 mm wide x 700 mm deep x 850 mm high, plus a 100 mm rear splashback.
What is the bowl size?
The bowl measures approximately 1450 mm wide x 500 mm deep x 350–400 mm bowl depth.
Does this model include a drain board?
No. This model does not include a drain board. Therefore, the full width supports a larger washing and soaking bowl.
What stainless steel grade is used?
The listed specification uses AISI 304 stainless steel for commercial kitchen wet areas.
Can it fit around wall-side pipework?
Yes. The rear legs are inset by 100 mm to help provide clearance for wall-side pipes, coving, or services.
Are smaller pot wash sink sizes available?
Yes. ALPHA also offers linked 100 cm, 120 cm, and 140 cm pot wash sink models.
Can ALPHA supply this sink across the UAE?
Yes. ALPHA supplies stainless steel kitchen sinks across the UAE, subject to confirmed specification, delivery requirements, and quotation terms.
