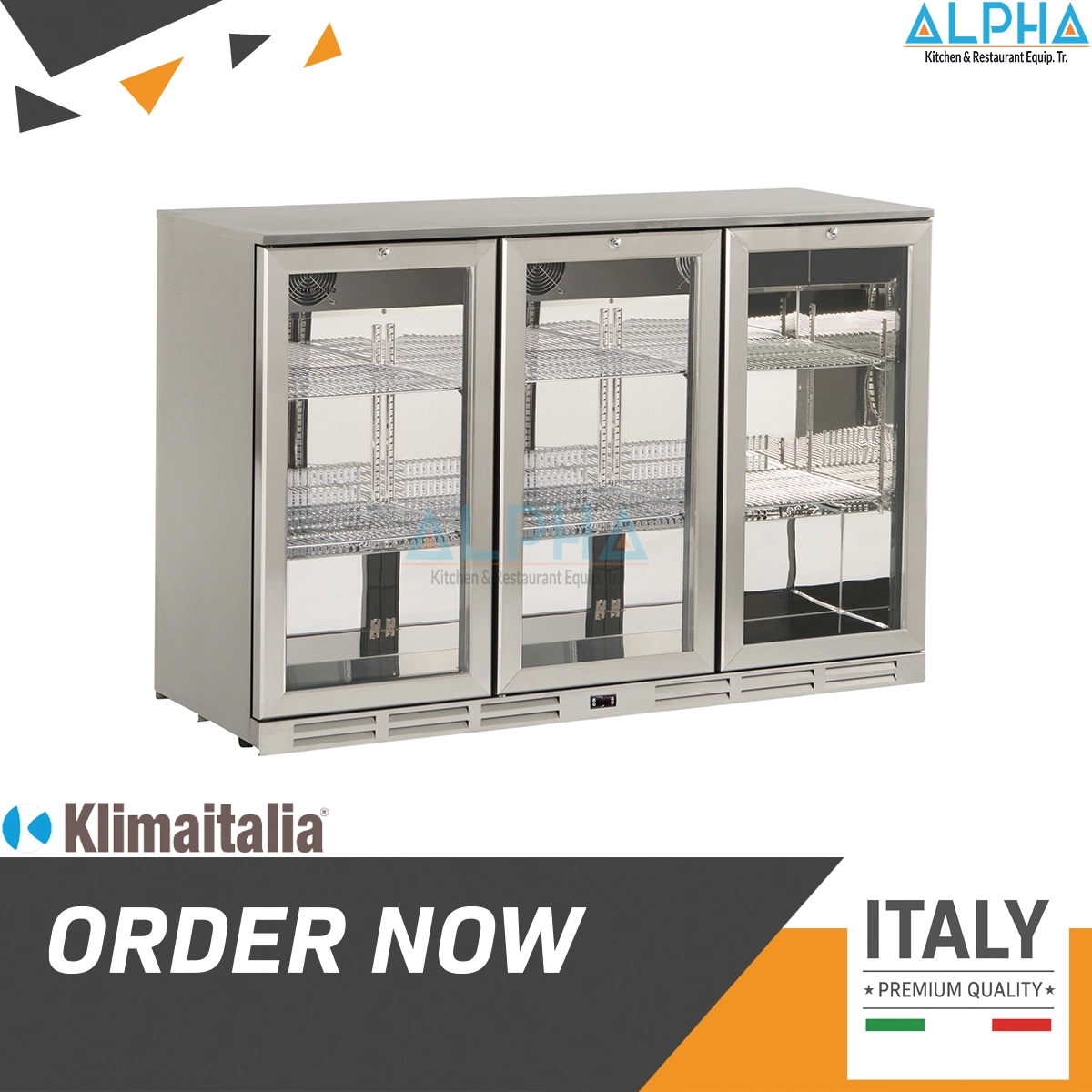

Klimaitalia S285XH Back Bar Cooler 3 Doors
The Klimaitalia S285XH back bar cooler 3 doors is a commercial undercounter beverage cooler for bars, cafés, restaurants, hotels, lounges, juice counters, and service areas. It gives staff chilled storage for bottles, cans, mixers, soft drinks, and selected bar beverages close to the serving point.
In addition, this 3-door back bar cooler offers 241 litres of storage capacity, static fan-assisted cooling, AISI 304 stainless steel internal liner and door frame, LED interior lighting, and adjustable shelves. Therefore, it suits busy beverage stations that need clear visibility and fast access during service.
Download Data sheet : Back Bar Cooler 3 Doors S285XH
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Back Bar Cooler 3 Doors |
| Product Type | Commercial undercounter back bar beverage cooler |
| Brand | Klimaitalia |
| Model | S285XH |
| SKU | S285XH |
| Supplier | Available through ALPHA |
| ALPHA Supply Reference | ALPHA project-ready specification for commercial back bar cooler supply |

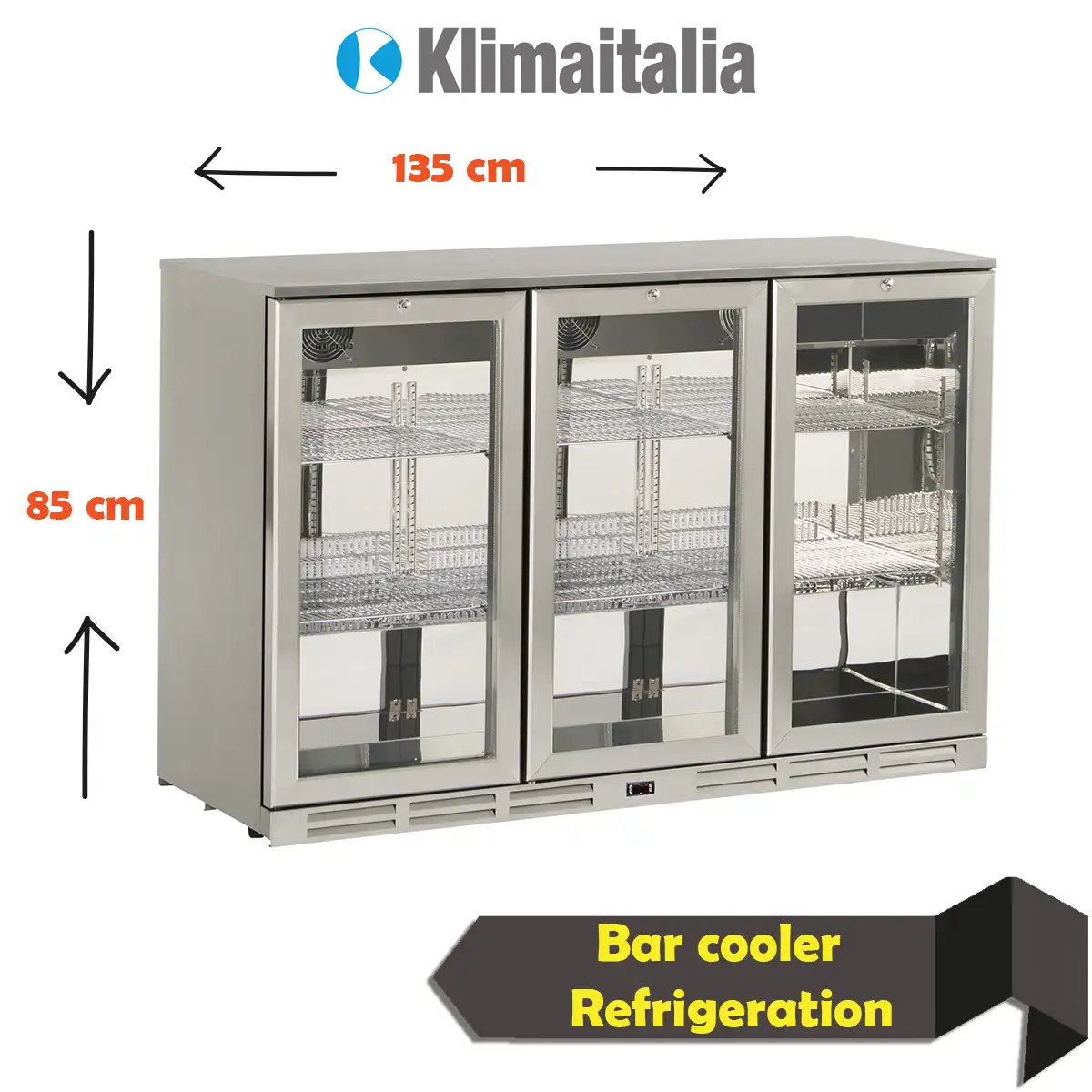

| External Dimensions | 1350 mm width x 530 mm depth x 845 mm height |
| Net / Gross Volume | 241 litres |
| Storage Capacity | Up to 225 cans 330 ml or 132 bottles 660 ml |
| Door Quantity | 3 doors |
| Temperature Range | 0°C to +10°C |
| Cooling Type | Static fan-assisted cooling |
| Refrigerant | R600a |
| Defrost System | Automatic compressor-cycle defrost with manual support |
| Interior and Door Frame | AISI 304 stainless steel internal liner and door frame |
| Exterior | Pre-painted anti-corrosion outer sheet |
| Shelves | 4 adjustable shelves |
| Shelf Sizes | 355 x 400 mm and 347 x 440 mm |
| Lighting | Horizontal LED interior lighting |
| Control | Digital thermostat |
| Smart Option | Optional Smart Link Wi-Fi remote monitoring |
| Insulation | 50 mm insulation |
| Noise Level | 50 dB |
| Energy Consumption | 1.52 kWh / 24 h |
| Power Absorption | 220 W |
| Voltage / Frequency | 220–240 V / 50 Hz, 60 Hz optional |
| Climate Class | Class 4, ambient up to 30–32°C |
| Weight | 82 kg net / 93 kg gross |
| Feet | 4 adjustable feet |
| Door Security | Self-closing door with lock and key |
| Main Application | Chilled storage for bottles, cans, mixers, soft drinks, and bar beverages |
Call WhatsApp Request Quotation
Key Specs Summary
| Buying Point | Details |
|---|---|
| Large Beverage Capacity | 241 litres with space for up to 225 cans or 132 bottles |
| 3-Door Access | Wide undercounter access helps staff serve drinks quickly |
| Reliable Cooling Range | 0°C to +10°C range suits soft drinks, mixers, and chilled beverages |
| Professional Build | AISI 304 stainless steel internal liner and door frame support commercial use |
| Energy and Noise Control | 1.52 kWh / 24 h energy use with 50 dB operating noise |
| Smart Option | Optional Smart Link Wi-Fi supports remote monitoring when required |
Best For
- Hotel bars, lounges, and beverage service counters.
- Restaurants with high-volume drink service.
- Cafés, coffee shops, and juice counters.
- Bars that need organized undercounter beverage storage.
- Cloud kitchens and takeaway counters storing bottled drinks.
- Commercial spaces that need chilled drinks close to service staff.
High-Capacity Back Bar Cooling for Busy Service Areas
The Klimaitalia S285XH helps beverage teams keep drinks cold and visible during service. Therefore, staff can reach bottles and cans quickly without moving to a separate upright chiller.
241 Litre Beverage Storage
The 241 litre volume supports high-demand bar service. In addition, the unit can hold up to 225 cans or 132 bottles, so it works well for busy cafés, bars, and restaurants.
Static Fan-Assisted Cooling
The static fan-assisted system helps maintain chilled storage between 0°C and +10°C. As a result, drinks stay ready for service across different shelf levels.
AISI 304 Internal Liner and Door Frame
The AISI 304 stainless steel internal liner and door frame support daily cleaning and commercial use. Moreover, the pre-painted anti-corrosion exterior gives the unit a practical finish for bar areas.
LED Lighting and Adjustable Shelves
The horizontal LED lighting improves product visibility inside the cabinet. Also, the 4 adjustable shelves help staff arrange cans, bottles, mixers, and selected beverages more efficiently.
Digital Control and Optional Smart Link
The digital thermostat helps staff monitor cooling performance during operation. In addition, the optional Smart Link Wi-Fi feature can support remote monitoring for projects that need connected equipment control.
Available Back Bar Cooler Options
| Option | Best Use | View Product |
|---|---|---|
| 1 Door Back Bar Cooler | Compact chilled beverage storage for smaller counters | View 1 Door Back Bar Cooler |
| Back Bar Cooler 3 Doors | Higher beverage storage capacity for busy bars | Current model |
| Beverage Cooler 2 Glass Doors | Display-style chilled beverage storage for cafés and service areas | View Beverage Cooler 2 Glass Doors |
Installation and Usage Notes
- Confirm the 1350 x 530 x 845 mm dimensions against the bar counter space.
- Keep enough ventilation clearance around the refrigeration system.
- Place the cooler away from ovens, grills, direct sunlight, and other heat sources.
- Confirm voltage, frequency, plug type, accessories, and optional Smart Link requirement before quotation approval.
- Allow the cooler to reach the correct temperature before loading beverages.
- Do not overload shelves or block internal airflow.
- Use the adjustable feet to level the unit after positioning.
- Clean the doors, handles, shelves, gaskets, condenser area, and internal liner regularly.
- Keep doors closed as much as possible during busy service.
Delivery and Support in UAE
ALPHA supplies Klimaitalia back bar coolers, bottle coolers, beverage coolers, display chillers, and commercial refrigeration equipment for restaurants, cafés, hotels, bars, juice counters, cloud kitchens, and foodservice projects across the UAE. In addition, ALPHA can confirm product availability, delivery timing, final specification, and warranty terms before quotation.
For back bar cooler selection or beverage counter planning, request a quotation from ALPHA with your required size and beverage storage capacity.
GCC Export Support
ALPHA can support selected export orders from the UAE to Qatar and Saudi Arabia. However, availability, packing, delivery terms, shipping cost, and warranty arrangements depend on the selected model, quantity, and destination.
Warranty and After-Sales Note
ALPHA provides after-sales support in the UAE according to the confirmed quotation and supplied refrigeration specification. However, warranty coverage does not include damage caused by incorrect electrical supply, poor ventilation, blocked condenser, overloading, misuse, poor cleaning, impact, poor site handling, or unauthorized repair.
Related Commercial Refrigeration Equipment

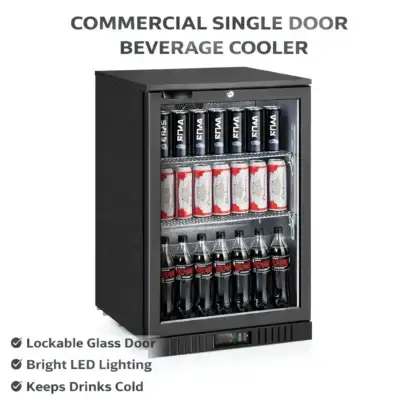

- 1 Door Back Bar Cooler
- Beverage Cooler 2 Glass Doors
- Refrigerated Counter 3 Doors CXF3100TN
- 2-Door Refrigerated Counter
FAQ
What is the Klimaitalia S285XH back bar cooler used for?
It stores chilled bottles, cans, mixers, soft drinks, and selected bar beverages near the serving point in bars, cafés, restaurants, and hotels.
What is the capacity of this 3-door back bar cooler?
The unit has 241 litres of volume and can hold up to 225 cans of 330 ml or 132 bottles of 660 ml.
What are the dimensions?
The external dimensions are 1350 mm width x 530 mm depth x 845 mm height.
What is the temperature range?
The cooling range is 0°C to +10°C, which suits soft drinks, mixers, and chilled beverage storage.
Does this cooler include adjustable shelves?
Yes. It includes 4 adjustable shelves to help organize cans, bottles, and beverage items.
What refrigerant does it use?
The listed refrigerant is R600a.
Can this cooler connect to Wi-Fi?
Optional Smart Link Wi-Fi remote monitoring can be reviewed before quotation when the project requires it.
Can ALPHA supply this back bar cooler across the UAE?
Yes. ALPHA supplies back bar coolers and commercial refrigeration equipment across the UAE, subject to availability, delivery requirements, and confirmed quotation terms.
