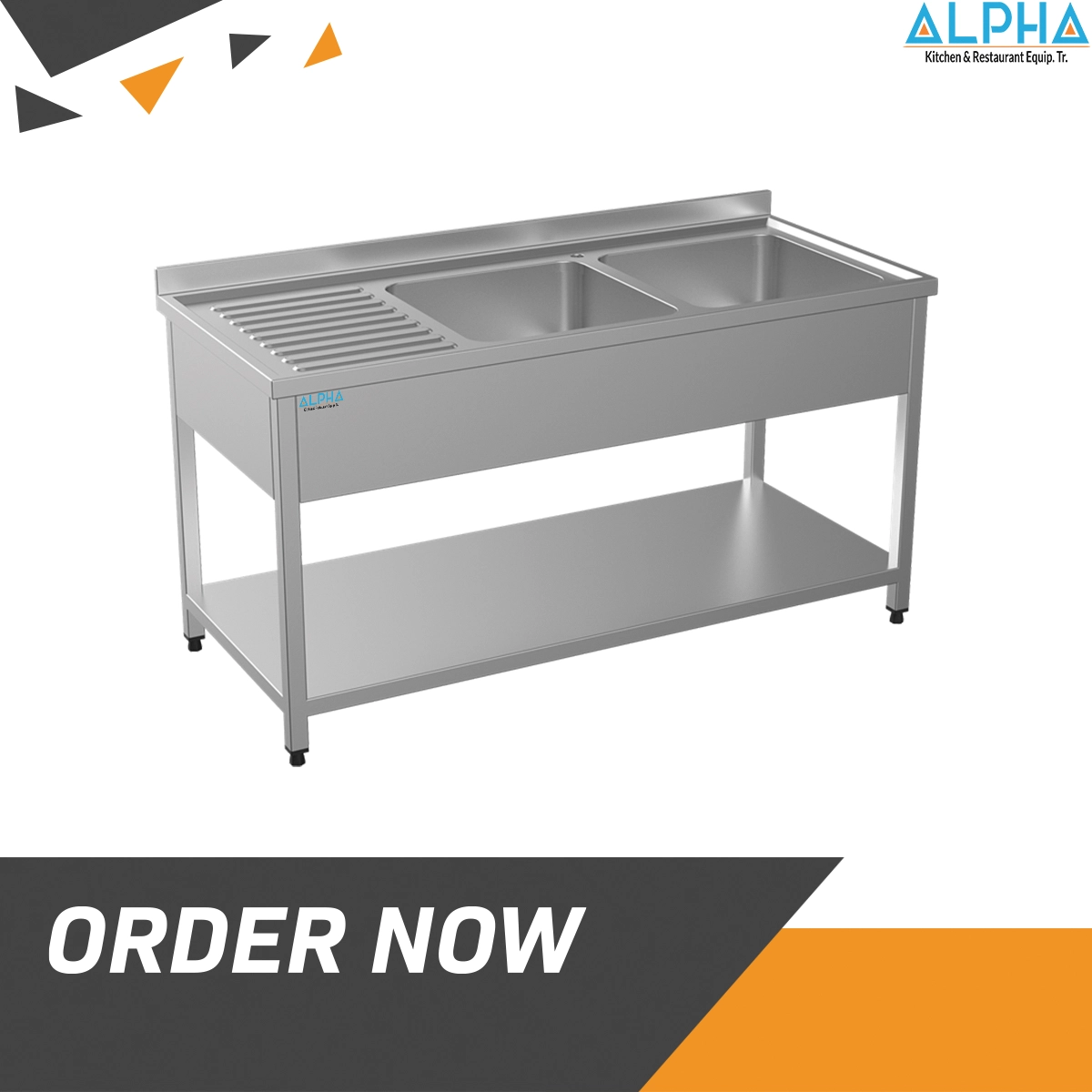

Restaurant Double Bowl Stainless Steel Sink 160 x 70 cm
The restaurant double bowl stainless steel sink 160 x 70 cm provides washing, rinsing, and draining space for professional kitchen operations. ALPHA fabricates this sink from AISI 304 18/10 stainless steel with two deep bowls, a side drain board, rear backsplash, and lower undershelf.
This sink suits restaurants, hotels, cafés, bakeries, catering kitchens, cloud kitchens, central kitchens, and food preparation areas. Moreover, the 160 cm length gives staff useful working space for handling utensils, containers, ingredients, and washing tasks during busy service periods.
Call WhatsApp Request Quotation
Best For
- Restaurant kitchens that need separate washing and rinsing basins.
- Hotel kitchens, banquet areas, and service preparation rooms.
- Catering kitchens and central production facilities.
- Cafés and bakeries with regular tray and utensil washing needs.
- Cloud kitchens and commissary preparation areas.
- Food production areas and wet preparation stations.
Key Specs Summary
| Buying Point | Details |
|---|---|
| Standard Size | 1600 mm length x 700 mm depth x 850 mm working height, plus 100 mm backsplash |
| Bowl Configuration | 2 sink bowls, each measuring 500 x 500 x 300 mm |
| Material Grade | AISI 304 18/10 stainless steel |
| Drain Board | Side drain board for washed or rinsed items; confirm required orientation before fabrication |
| Included Features | Rear backsplash and stainless steel undershelf |
| Available Lengths | 1400 mm, 1600 mm, 1800 mm, and 2000 mm |
| Custom Fabrication | Custom sizes available upon request. |
Double Bowl Sink with Drain Board for Busy Kitchens
A restaurant wash area needs enough space to manage different tasks without slowing kitchen staff. This double bowl sink provides two basins for washing and rinsing, while the side drain board gives staff a nearby area for placing washed utensils or containers.
In addition, the lower undershelf helps keep suitable equipment close to the washing point. As a result, the sink supports a more organized workflow in wet preparation and washing areas.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Restaurant Double Bowl Stainless Steel Sink 160 x 70 cm |
| Product Type | Commercial double bowl sink with drain board and undershelf |
| Product Category | Commercial Stainless Steel Sinks |
| Fabricator | Alpha-inox / ALPHA Kitchen Factory |
| Fabrication Reference | ALPHA fabrication reference for commercial double bowl sink and drain board production |
| Material Grade | AISI 304 18/10 stainless steel |
| Standard Dimensions | 1600 x 700 x850 mm |
| Available Length Options | 1400 mm, 1600 mm, 1800 mm, and 2000 mm |
| Bowl Quantity | 2 sink bowls |
| Bowl Dimensions | 500 mm width x 500 mm depth x 300 mm bowl depth, each |
| Drain Board Configuration | Side drain board; confirm required left-side or right-side orientation before production |
| Backsplash | 100 mm rear stainless steel backsplash |
| Lower Storage | Stainless steel undershelf |
| Alternative Base Configuration | Base cabinet option with hinged doors or sliding doors can be reviewed |
| Faucet / Mixer Tap | Not included |
| Net Weight | 50 kg |
| Gross Weight | 60 kg |
| Packing Dimensions | 2000 mm length x 700 mm depth x 1100 mm height |
| Main Application | Washing, rinsing, draining, utensil handling, container cleaning, and wet food preparation support |
Factory-Made Stainless Steel Construction
This restaurant double bowl sink is fabricated for demanding commercial kitchen use. Its AISI 304 stainless steel construction, two deep basins, side drain board, rear backsplash, and lower undershelf create a practical washing station for restaurants, hotels, catering kitchens, bakeries, cafés, and food preparation facilities.
Two Deep Washing Bowls
Each sink bowl measures 500 x 500 x 300 mm. Therefore, staff gain practical washing depth for utensils, containers, trays, and selected preparation items during daily operation.
Side Drain Board for Wet Workflow
The side drain board adds a dedicated area beside the bowls. As a result, staff can place rinsed items on the draining surface before moving them to the next stage of the kitchen workflow.
AISI 304 Stainless Steel Construction
ALPHA fabricates this sink from AISI 304 18/10 stainless steel. Consequently, the unit suits wet commercial kitchen areas that require regular cleaning and dependable daily use.
Rear Backsplash for Wall Protection
The rear backsplash helps reduce splashes reaching the wall behind the sink. In addition, it supports faster cleaning around the washing station after daily operation.
Lower Undershelf or Enclosed Base Option
The standard specification includes an undershelf for open lower storage. However, buyers can also review a base cabinet with hinged or sliding doors when the project requires enclosed storage below the sink.

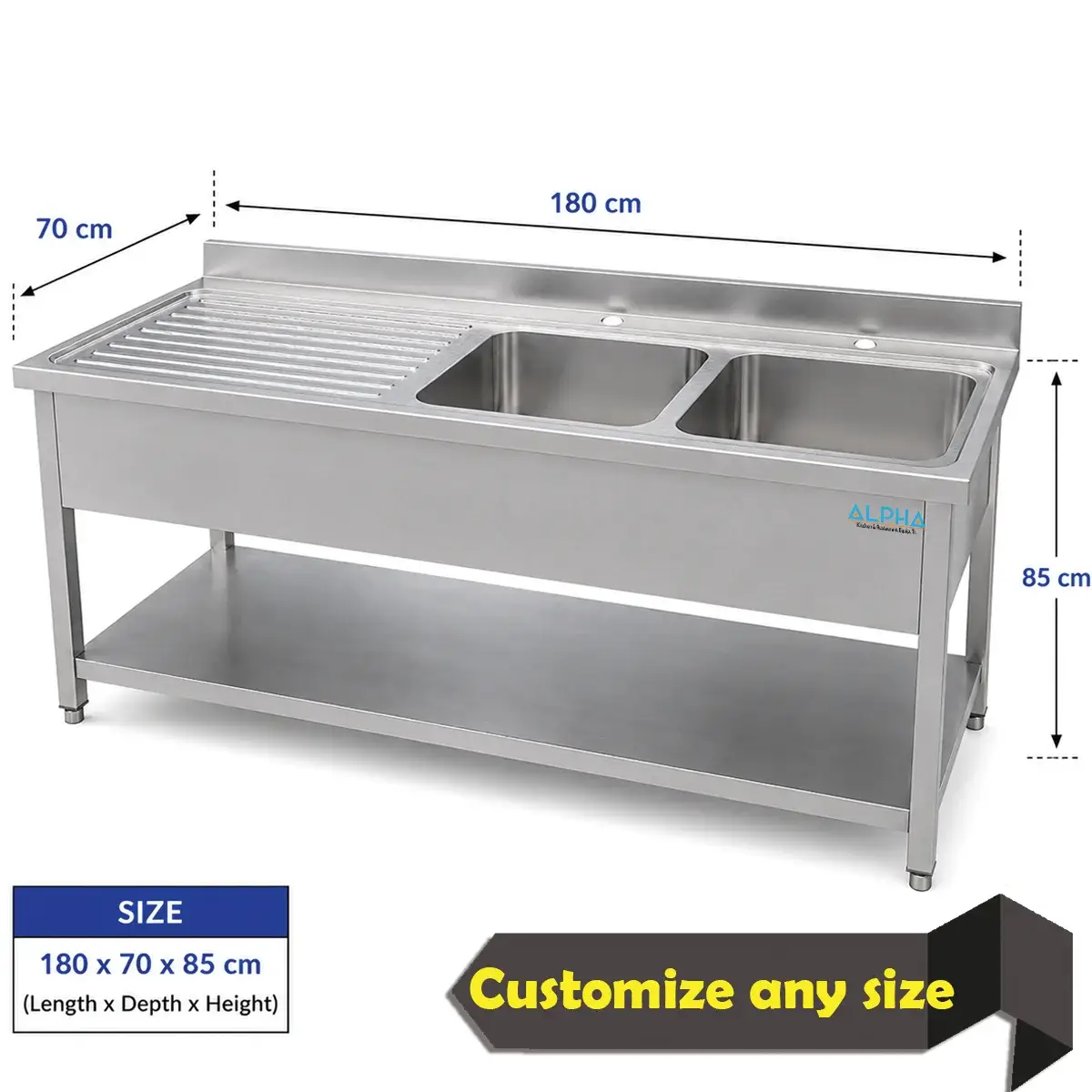

Four Standard Length Choices
The sink is available in 1400 mm, 1600 mm, 1800 mm, and 2000 mm lengths. Therefore, buyers can select a working size that better fits the kitchen layout and expected washing volume.
Available Configurations
| Configuration | Best Use | Main Advantage |
|---|---|---|
| Double Bowl Sink 160 x 70 cm with Drain | Restaurant washing areas that need basin and draining capacity | Combines two bowls and a draining surface in one line |
| Double Bowl Sink with Undershelf | General washing and rinsing sections | Provides accessible lower storage for permitted items |
| Double Bowl Sink with Hinged Door Cabinet | Areas with sufficient front door clearance | Creates enclosed storage below the washing unit |
| Double Bowl Sink with Sliding Door Cabinet | Narrow aisles and busy kitchen lines | Allows enclosed access without hinged-door swing space |
Installation and Usage Notes
- Confirm the required length, bowl arrangement, and drain board orientation before fabrication.
- Check the installation area against the standard 1600 x 700 x 850 + 100 mm dimensions.
- Confirm the water inlet, waste outlet, and faucet or pre-rinse shower requirements before production.
- Select a compatible faucet or mixer tap separately because it is not included.
- Position the backsplash side against the wall where splash protection is required.
- Choose hinged or sliding cabinet doors only when enclosed lower storage is required.
- Keep adequate front clearance for washing, draining, cleaning, and staff movement.
- Clean the bowls, drain board, backsplash, shelf, and frame with non-abrasive products suitable for stainless steel.
Delivery and Support in UAE
ALPHA supplies restaurant double bowl stainless steel sinks for restaurants, hotels, cafés, bakeries, catering kitchens, cloud kitchens, central kitchens, and food preparation projects across the UAE. In addition, ALPHA can confirm the sink layout, cabinet option, drain board orientation, delivery timing, and project requirements before quotation.
For sink configuration, base cabinet options, or project supply, request a quotation from ALPHA with the required application and site details.
GCC Export Support
ALPHA can support selected export orders from the UAE to Qatar and Saudi Arabia. However, packing, delivery terms, shipping cost, and availability depend on the required quantity, configuration, and destination.
Warranty and After-Sales Note
ALPHA provides after-sales support in the UAE according to the confirmed quotation and final fabrication specification. However, warranty coverage does not include damage caused by incorrect plumbing, misuse, impact, unsuitable chemicals, poor site handling, or unauthorized modification.
Related Commercial Kitchen Equipment

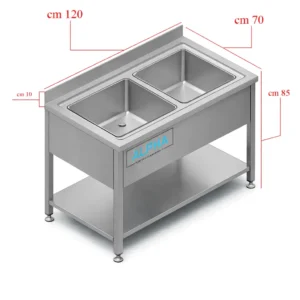

- Stainless Steel Double Bowl Sink 120 x 70 cm
- Single Basin with Space 120 cm
- Stainless Steel Workstation with Sinks and Drawers
Explore Commercial Stainless Steel Sinks
FAQ
What is the Restaurant Double Bowl Sink 160 x 70 cm used for?
This sink supports commercial washing, rinsing, and draining tasks. Therefore, it suits restaurants, hotels, catering kitchens, cafés, bakeries, central kitchens, and food preparation areas.
What are the dimensions of this sink unit?
The standard fabrication size is 1600 mm length x 700 mm depth x 850 mm working height, plus a 100 mm rear backsplash.
What is the size of each bowl?
Each bowl measures 500 mm wide x 500 mm deep x 300 mm bowl depth.
What material does ALPHA use for this sink?
ALPHA fabricates this sink from AISI 304 18/10 stainless steel for professional kitchen wet areas.
Does the sink include a drain board?
Yes. This model includes a side drain board. Confirm the required left-side or right-side orientation before fabrication.
Does the sink include a backsplash and undershelf?
Yes. The standard configuration includes a rear backsplash and a stainless steel undershelf.
Can the sink be supplied with enclosed lower storage?
Yes. ALPHA can review a base cabinet with hinged doors or sliding doors according to the required project layout.
Does the sink include a faucet or mixer tap?
No. The standard specification does not include a faucet or mixer tap. Therefore, select the required fitting according to the plumbing and washing application.
Can ALPHA supply the sink in another length?
Yes. Standard length options include 1400 mm, 1600 mm, 1800 mm, and 2000 mm. Custom fabrication can also be reviewed.
Can ALPHA supply this sink across the UAE?
Yes. ALPHA supplies stainless steel kitchen equipment across the UAE, subject to confirmed fabrication details, delivery requirements, and quotation terms.
