Single Bowl Stainless Steel Sink 50 x 70 cm for Commercial Kitchens
The single bowl stainless steel sink 50 x 70 cm gives professional kitchens a compact washing station for daily rinsing and cleaning work. It combines one deep bowl, a rear backsplash, and a lower undershelf in a fully welded stainless steel structure.
ALPHA fabricates this sink in AISI 304 18/10 stainless steel for restaurants, cafés, bakeries, hotels, cloud kitchens, catering kitchens, and food preparation areas. In addition, the open lower shelf keeps selected items within reach while the compact footprint suits limited working areas.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Single Bowl Stainless Steel Sink 50 x 70 cm |
| Product Type | Commercial single bowl sink with backsplash and undershelf |
| Product Category | Commercial Stainless Steel Sinks |
| Fabricator | ALPHA Kitchen Factory |
| Fabrication Reference | ALPHA fabrication reference for commercial single bowl sink production |
| Material Grade | AISI 304 18/10 stainless steel |
| Construction | Fully welded stainless steel sink unit |

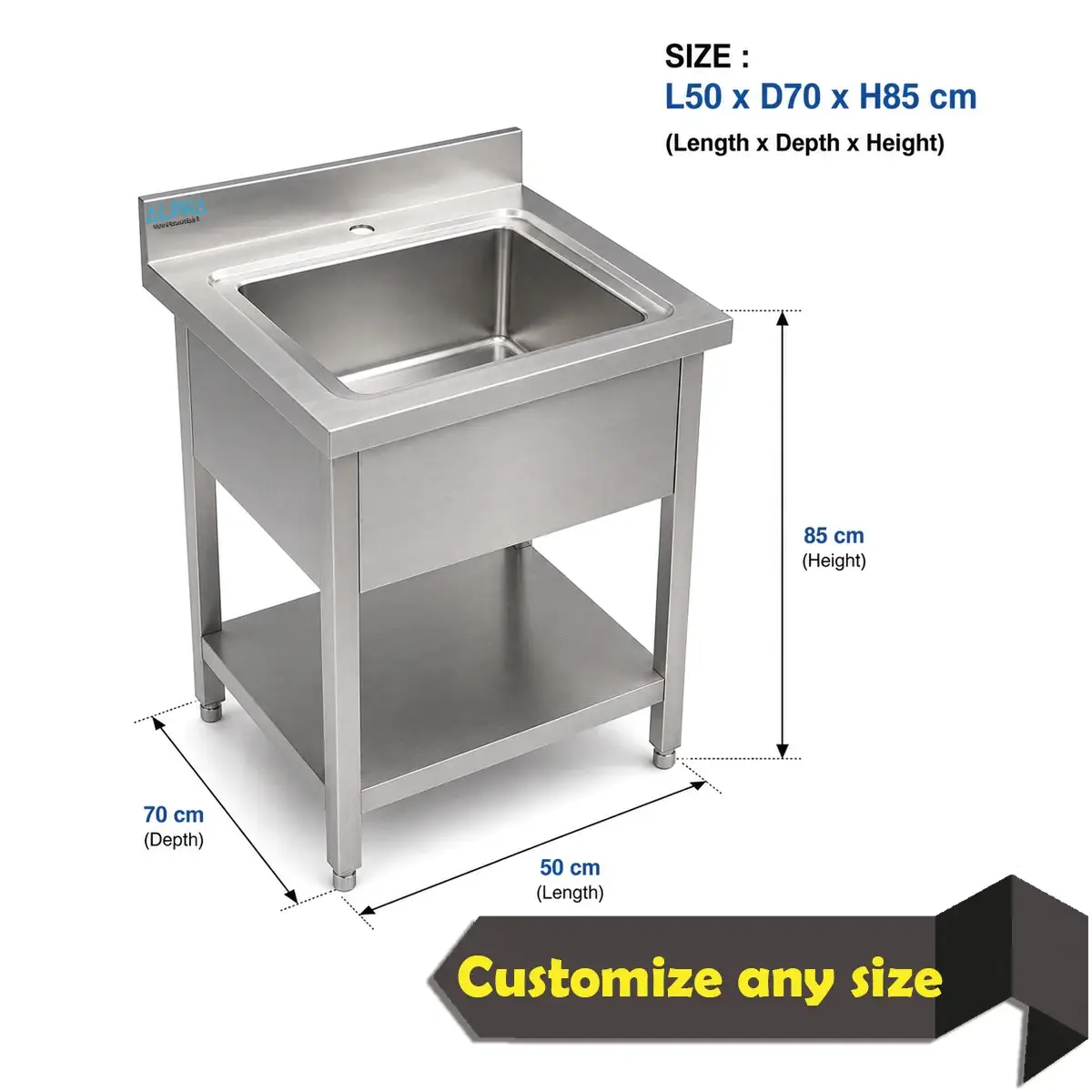

| Overall Dimensions | 500 mm width x 700 mm depth x 850 mm height + 100 mm backsplash |
| Bowl Quantity | 1 sink bowl |
| Bowl Size | 400 mm width x 500 mm depth x 300 mm height |
| Drain Board | Without drain board |
| Backsplash | Rear stainless steel backsplash |
| Lower Storage | Stainless steel undershelf |
| Faucet / Mixer Tap | Not included |
| Optional Mobility | Wheel option can be reviewed before quotation |
| Main Application | Washing, rinsing, wet preparation, utensil handling, and compact kitchen workflow support |
Call WhatsApp Request Quotation
Compact Washing Station for Professional Kitchens
This single bowl sink suits kitchens that need a dedicated washing point without using excessive floor space. The 500 mm width makes the sink practical for compact preparation lines, side washing stations, bakery areas, and small commercial kitchen layouts.
Moreover, the 700 mm depth provides a useful working profile for daily rinsing tasks. The 300 mm deep bowl gives staff space to wash utensils, containers, vegetables, or small preparation items according to the kitchen operation.
Which Sink Size Is Right for Your Kitchen?
| Model | Overall Size | Bowl | Best For |
|---|---|---|---|
| Single Bowl 80×70 | 800×700 mm | Single | Compact stations, back-of-bar |
| Single Bowl + Drainer 100×70 | 1000×700 mm | Single + drainer | Small prep areas, pass kitchens |
| Sink 50 x 70 cm | 500×700 mm | Single | Standard prep and veg wash |
| Pot Wash Sink 120 | 1200×700 mm | Deep pot bowl | Heavy pot and tray washing |
| Double Bowl Sink 160 | 1600×700 mm | Two bowls | Busy dishwash and prep combined |
Key Specs Summary
| Buying Point | Details |
|---|---|
| Compact Size | 500 x 700 mm footprint for smaller commercial kitchen washing areas |
| Deep Bowl | 400 x 500 x 300 mm bowl for daily rinsing and washing tasks |
| Hygienic Material | AISI 304 18/10 stainless steel for professional wet areas |
| Wall Protection | 100 mm rear backsplash helps control splashes behind the sink |
| Open Storage | Lower undershelf adds useful storage below the washing area |
| Custom Fabrication | Custom sizes available upon request. |
Best For
- Restaurant kitchens that need a compact utensil or preparation sink.
- Cafés and bakeries with limited washing space.
- Cloud kitchens requiring a wall-side washing station.
- Hotel pantry areas and service kitchens.
- Catering kitchens and food preparation areas.
- Vegetable rinsing and light wet preparation zones.
- Laboratories or institutional areas requiring AISI 304 stainless steel equipment.
Factory-Made Stainless Steel Sink Construction
This single bowl stainless steel sink is fabricated for heavy-duty commercial kitchen use. The fully welded AISI 304 structure, deep washing bowl, rear backsplash, and lower undershelf create a practical unit for daily washing and preparation tasks.
AISI 304 Stainless Steel for Wet Kitchen Areas
ALPHA fabricates this sink from AISI 304 18/10 stainless steel. Therefore, the unit suits professional wet areas that require frequent cleaning and a durable stainless steel surface.
Single Bowl without Drain Board
This model uses one sink bowl without a side drain board. As a result, it keeps the overall footprint compact and fits kitchens where washing space matters more than side draining space.
Deep Bowl for Daily Washing Work
The bowl measures 400 x 500 x 300 mm. Consequently, staff can handle rinsing, washing, and wet preparation tasks in a practical basin size while preserving floor space in the kitchen line.
Rear Backsplash for Cleaner Wall-Side Use
The 100 mm rear backsplash helps control splashes behind the sink. In addition, it supports easier cleaning when the unit sits against a wall in a commercial kitchen.
Lower Undershelf for Storage
The undershelf provides open storage below the sink bowl. Staff can use this lower space for selected containers or kitchen items according to the site’s hygiene plan and workflow requirements.
Faucet Choice Based on Site Requirements
The sink does not include a faucet or mixer tap. Therefore, buyers can select a compatible tap or pre-rinse shower according to the plumbing position and daily washing application.
Available Single Bowl Sink Options
| Option | Best Use | Main Advantage |
|---|---|---|
| Single Bowl Sink 50 x 70 cm | Compact washing points and small kitchen areas | Deep bowl within a space-saving footprint |
| Single Bowl Sink with Drain Board | Washing areas that need side draining space | Combines washing and draining in one unit |
| Double Bowl Sink | Kitchens that need separate wash and rinse bowls | Supports a two-stage washing workflow |
| Sink Cabinet with Storage | Washing points requiring enclosed lower storage | Keeps stored items concealed below the sink |
Installation and Usage Notes
- Confirm the installation area against the 500 x 700 x 850 + 100 mm overall size.
- Check the water inlet, waste outlet, and tap position before final fabrication approval.
- Select a compatible faucet or pre-rinse shower separately because the sink does not include a tap.
- Install the backsplash side against the wall where splash control is required.
- Keep the lower undershelf clean and use it according to the site’s hygiene procedures.
- Choose the optional wheel configuration only when mobility supports the workflow and site safety.
- Clean the bowl, backsplash, frame, and undershelf with products suitable for AISI 304 stainless steel.
- Confirm custom size, plumbing details, and final fabrication specification before quotation approval.
Delivery and Support in UAE
ALPHA supplies stainless steel single bowl sinks for restaurants, cafés, bakeries, hotels, catering kitchens, cloud kitchens, institutional kitchens, and food preparation projects across the UAE. In addition, ALPHA can confirm final fabrication details, delivery timing, and project requirements before quotation.
For sink size, plumbing position, or project supply, request a quotation from ALPHA with your required kitchen application.
GCC Export Support
ALPHA can support selected export orders from the UAE to Qatar and Saudi Arabia. However, packing, delivery terms, shipping cost, and availability depend on the required quantity and destination.
Warranty and After-Sales Note
ALPHA provides after-sales support in the UAE according to the confirmed quotation and final fabrication specification. However, warranty coverage does not include damage caused by incorrect plumbing, misuse, impact, unsuitable chemicals, poor site handling, or unauthorized modification.
Related Commercial Kitchen Equipment
- Single Bowl Stainless Steel Sink with Drain Board 120 x 70 cm
- Stainless Steel Workstation with Sinks and Drawers
Explore Commercial Stainless Steel Sinks
FAQ
What is the Single Bowl Stainless Steel Sink 50 x 70 cm used for?
This sink supports washing, rinsing, and wet preparation tasks in commercial kitchens. Moreover, its compact width suits smaller wall-side washing areas.
What are the dimensions of this sink unit?
The sink unit measures 500 mm wide x 700 mm deep x 850 mm high, plus a 100 mm rear backsplash.
What is the bowl size?
The listed bowl size is 400 mm wide x 500 mm deep x 300 mm high.
What stainless steel grade does ALPHA use for this sink?
ALPHA fabricates this unit from AISI 304 18/10 stainless steel for professional kitchen washing areas.
Does this sink include a drain board?
No. This model does not include a drain board. Therefore, it suits compact areas where a single washing bowl is the priority.
Does this sink include a backsplash and undershelf?
Yes. The unit includes a rear backsplash and a lower stainless steel undershelf for practical daily use.
Does the sink include a faucet or mixer tap?
No. The faucet or mixer tap is not included. Therefore, select the tap or pre-rinse shower according to the plumbing and washing requirements.
Can ALPHA make this sink in another size?
Yes. ALPHA can review custom dimensions and final fabrication details according to the required kitchen layout.
