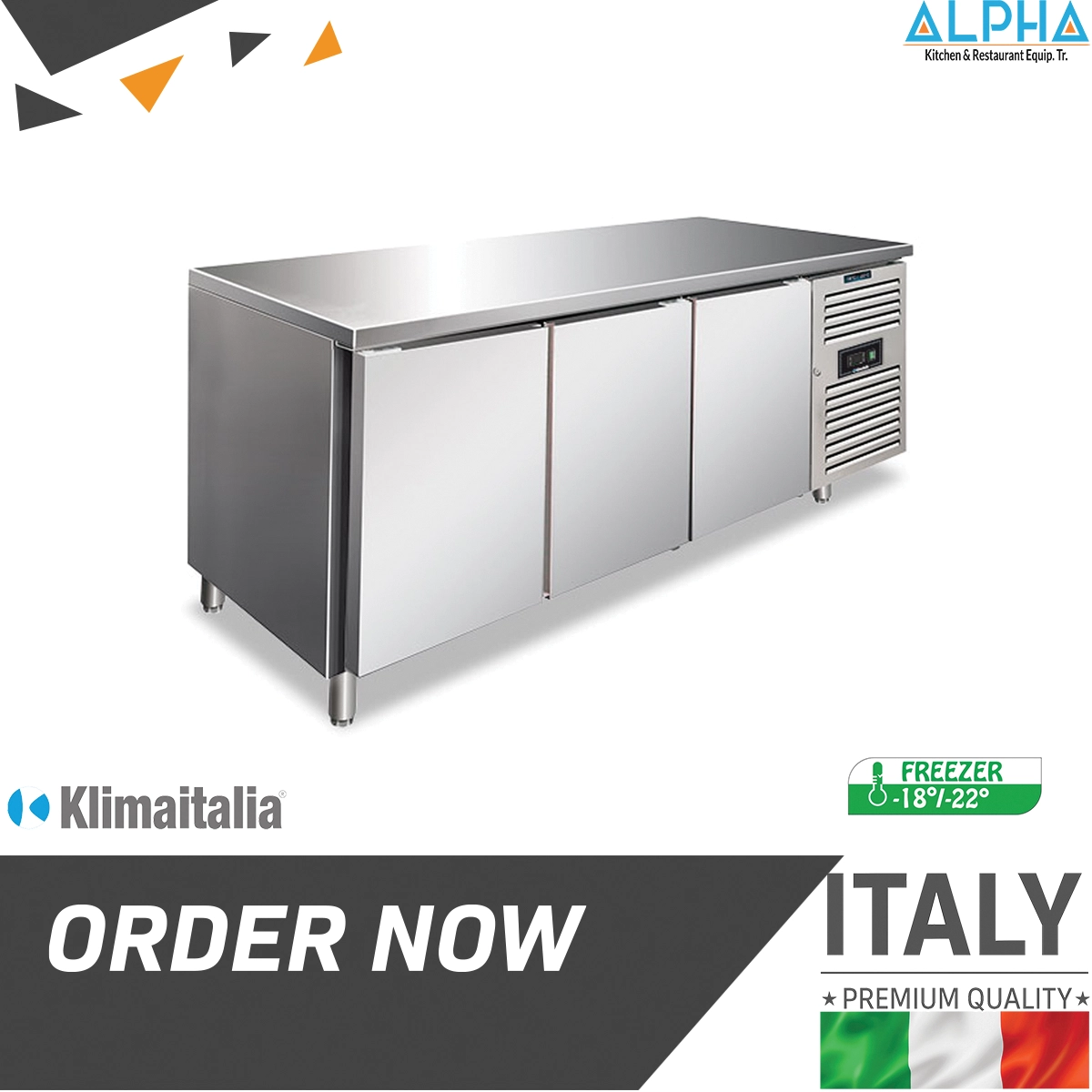

Undercounter Freezer 3 Door CXF3100BT
The CXF3100BT undercounter freezer is a three-door refrigerated counter for professional kitchens that need frozen storage below the working area. It helps restaurants, cafés, hotels, cloud kitchens, and catering kitchens keep frozen items close to the preparation line.
This model is available through ALPHA for UAE foodservice projects. In addition, its counter-style design supports better kitchen workflow because staff can use the top as a working surface while keeping frozen products below.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Undercounter Freezer 3 Door CXF3100BT |
| Product Type | Commercial undercounter freezer counter |
| Model | CXF3100BT |
| Supplier | Available through ALPHA |
| Supply Reference | ALPHA project-ready specification for commercial refrigerated counter supply |
| Door Quantity | 3 doors |
| Cooling Type | Freezer / low-temperature storage |
| Installation Type | Floor-standing undercounter refrigerated counter |
| Top Use | Countertop working surface for preparation support |
| Body Material | Stainless steel commercial body |
| Temperature Range | -22 °C / -18 °C |
| Dimensions | L 179,5 x D 70 x h 86 cm |
| Power and Voltage | 230V/1/50Hz / 570W |
| Refrigerant | R290a |
| Main Application | Frozen storage below the preparation counter in commercial kitchens |
Call WhatsApp Request Quotation
Key Specs Summary
| Buying Point | Details |
|---|---|
| Storage Type | Freezer counter for frozen ingredients and kitchen stock |
| Door Layout | Three-door access for organized frozen storage |
| Kitchen Workflow | Keeps frozen products close to the preparation area |
| Counter Function | Top surface supports preparation and plating work |
| Professional Use | Suitable for restaurants, cafés, hotels, cloud kitchens, and catering kitchens |
Best For
- Restaurant kitchens that need frozen storage below the preparation counter.
- Cloud kitchens with limited back-of-house space.
- Hotels and catering kitchens that store frozen ingredients near the work line.
- Cafés, bakeries, and dessert shops needing frozen product access.
- Food preparation areas that need a freezer counter instead of an upright freezer.
Freezer Counter for Preparation Lines
The CXF3100BT helps kitchen teams store frozen items directly below the work surface. Therefore, staff can reduce movement between the preparation counter and separate freezer storage during busy shifts.
Three-Door Frozen Storage
The three-door layout helps divide frozen products by category. For example, staff can separate meat, pastry items, frozen vegetables, or ready-prepared ingredients according to the kitchen workflow.
Countertop Work Surface
The top surface can support preparation, plating, packing, or temporary tray placement. As a result, the unit saves space because it combines frozen storage and worktop function in one footprint.
Stainless Steel Commercial Body
The stainless steel body suits professional kitchen use. In addition, it supports routine cleaning around preparation areas where hygiene and durability matter.
Correct Freezer Selection
Before ordering, confirm the final dimensions, temperature range, voltage, refrigerant, and warranty terms. This step helps ensure that the selected freezer counter matches the site and food storage requirement.
Related Refrigerated Counter Options
| Model | Best Use | View Product |
|---|---|---|
| CXF3100BT 3-Door Freezer Counter | Frozen storage below a preparation counter | Current model |
| PXF2100TN 2-Door Chiller | Chilled pastry or preparation storage | View Chiller 2 Doors PXF2100TN |
| CXF3100TN 3-Door Refrigerated Counter | Chilled storage below preparation worktop | View Refrigerated Counter 3 Doors CXF3100TN |
| 2-Door Refrigerated Counter | Compact chilled counter storage | View 2-Door Refrigerated Counter |
| 2-Door Counter Top Freezer | Compact frozen counter storage | View Freezer Counter Top 2 Doors |
| PXF3100TN Pastry Refrigerated Table | Pastry and bakery chilled preparation storage | View Pastry Refrigerated Table PXF3100TN |
Installation and Usage Notes
- Confirm the final external dimensions before checking the installation space.
- Keep ventilation clearance around the refrigeration system as required by the supplied model.
- Place the unit away from ovens, fryers, grills, and direct heat where possible.
- Confirm voltage, plug type, temperature range, and refrigerant before quotation approval.
- Allow the freezer to reach the correct temperature before loading frozen products.
- Do not block internal airflow or overload the cabinet.
- Clean door gaskets, handles, shelves, and stainless steel surfaces regularly.
Delivery and Support in UAE
ALPHA supplies undercounter freezers and refrigerated counters for restaurants, hotels, cafés, bakeries, cloud kitchens, catering kitchens, and foodservice projects across the UAE. In addition, ALPHA can confirm product availability, delivery timing, final specification, and warranty terms before quotation.
For freezer counter selection or project supply, request a quotation from ALPHA with your required storage type and kitchen layout.
GCC Export Support
ALPHA can support selected export orders from the UAE to Qatar and Saudi Arabia. However, availability, packing, delivery terms, shipping cost, and warranty arrangements depend on the selected model, quantity, and destination.
Warranty and After-Sales Note
ALPHA provides after-sales support in the UAE according to the confirmed quotation and supplied freezer specification. However, warranty coverage does not include damage caused by incorrect electrical supply, poor ventilation, blocked condenser, overloading, misuse, poor cleaning, impact, poor site handling, or unauthorized repair.
Related Commercial Refrigeration Equipment
- Chiller 2 Doors PXF2100TN
- Refrigerated Counter 3 Doors CXF3100TN
- 2-Door Refrigerated Counter
- Freezer Counter Top 2 Doors
- Pastry Refrigerated Table PXF3100TN
FAQ
What is the CXF3100BT undercounter freezer used for?
The CXF3100BT stores frozen ingredients below a preparation counter in restaurants, cafés, hotels, catering kitchens, cloud kitchens, and food preparation areas.
How many doors does this freezer counter have?
This model has three doors for organized access to frozen storage sections.
Is this unit a chiller or freezer?
The CXF3100BT is a freezer counter for low-temperature frozen storage. For chilled storage, review the CXF3100TN or PXF models.
Can staff use the top as a work surface?
Yes. The counter-style top can support preparation, plating, packing, or temporary tray placement according to the kitchen workflow.
What should be confirmed before ordering?
Confirm dimensions, temperature range, voltage, refrigerant, availability, warranty terms, and delivery access before quotation approval.
Can ALPHA supply other refrigerated counter models?
Yes. ALPHA can supply freezer counters, refrigerated counters, pastry refrigerated tables, and compact two-door models depending on the project requirement.
Can ALPHA supply this freezer counter across the UAE?
Yes. ALPHA supplies commercial refrigeration equipment across the UAE, subject to availability, delivery requirements, and confirmed quotation terms.
