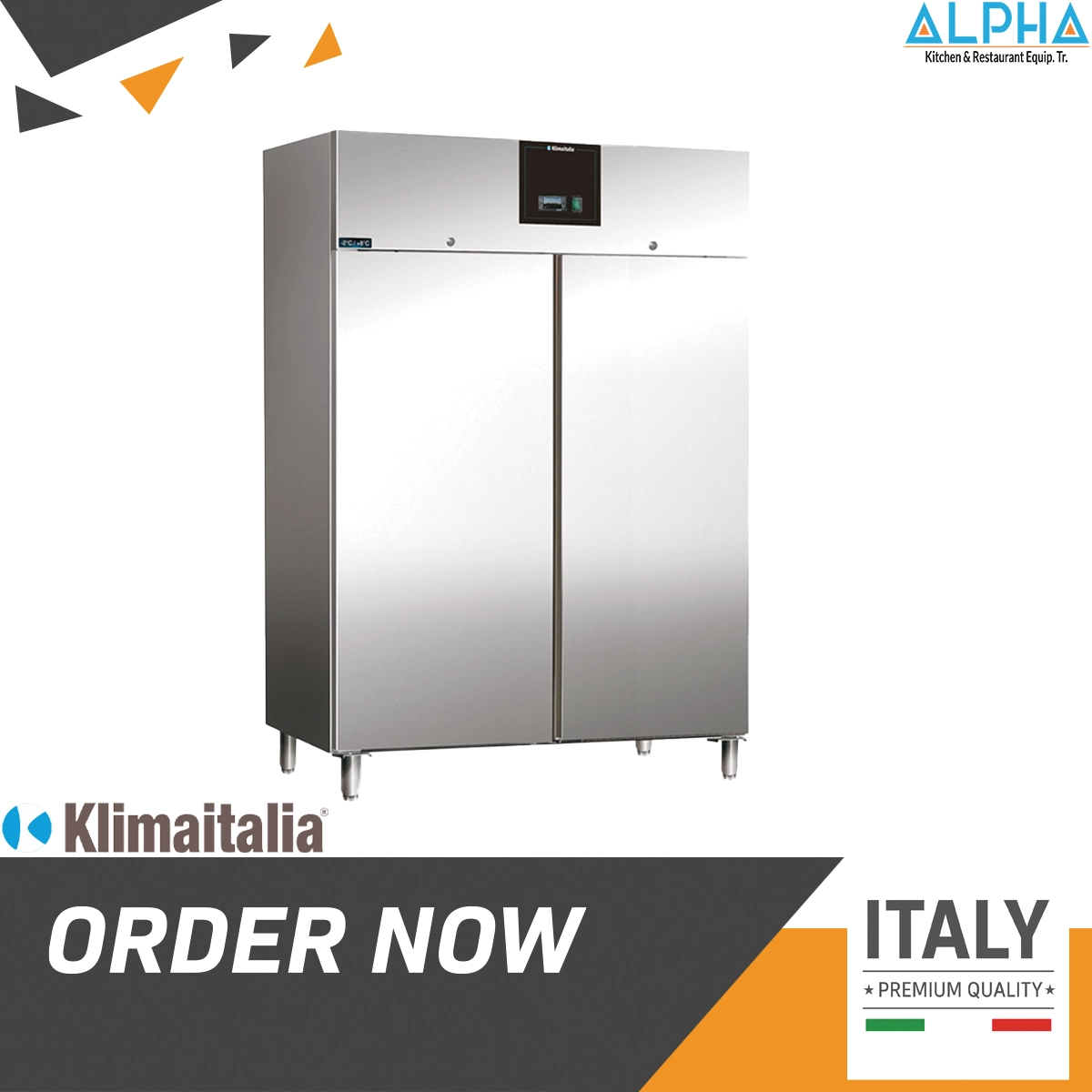

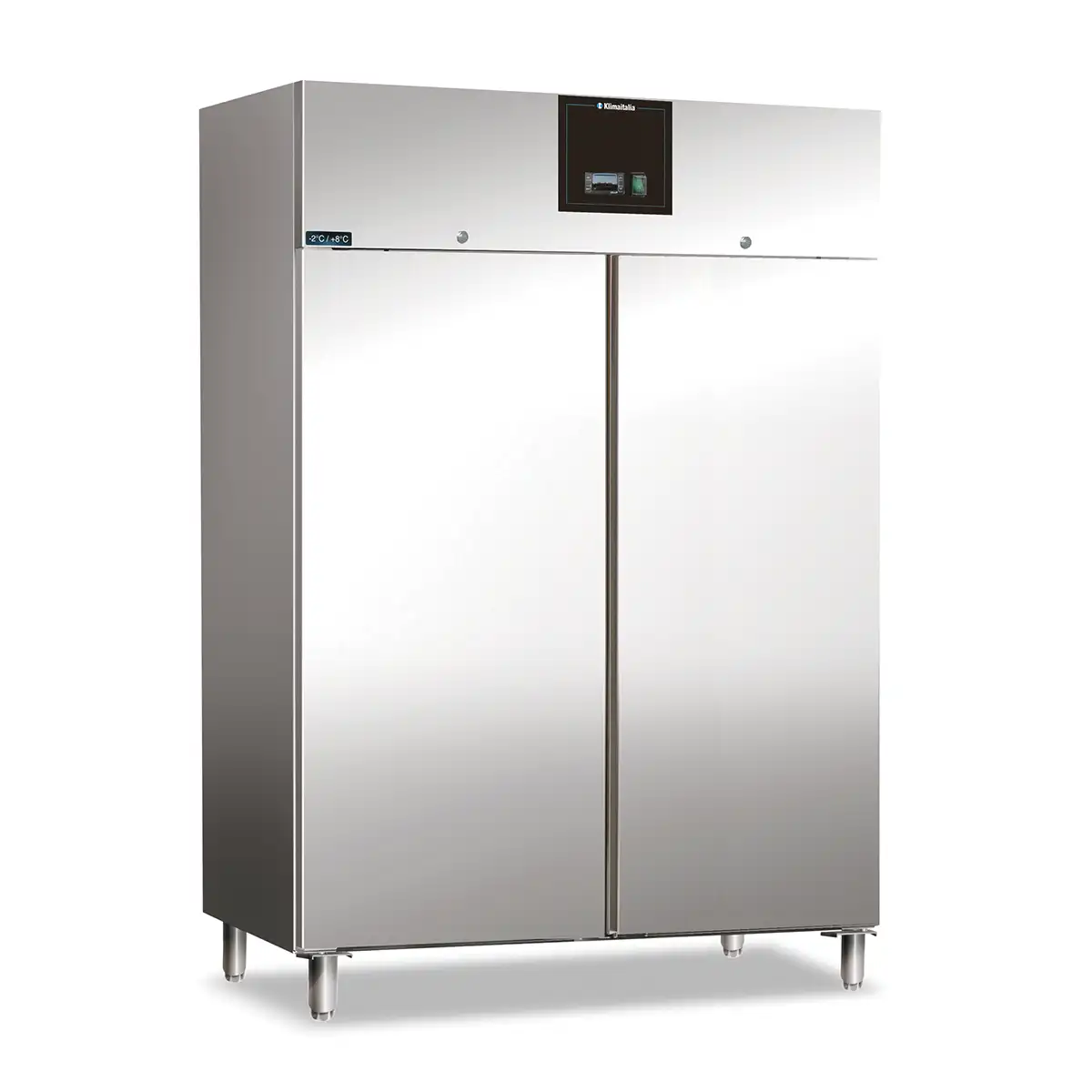

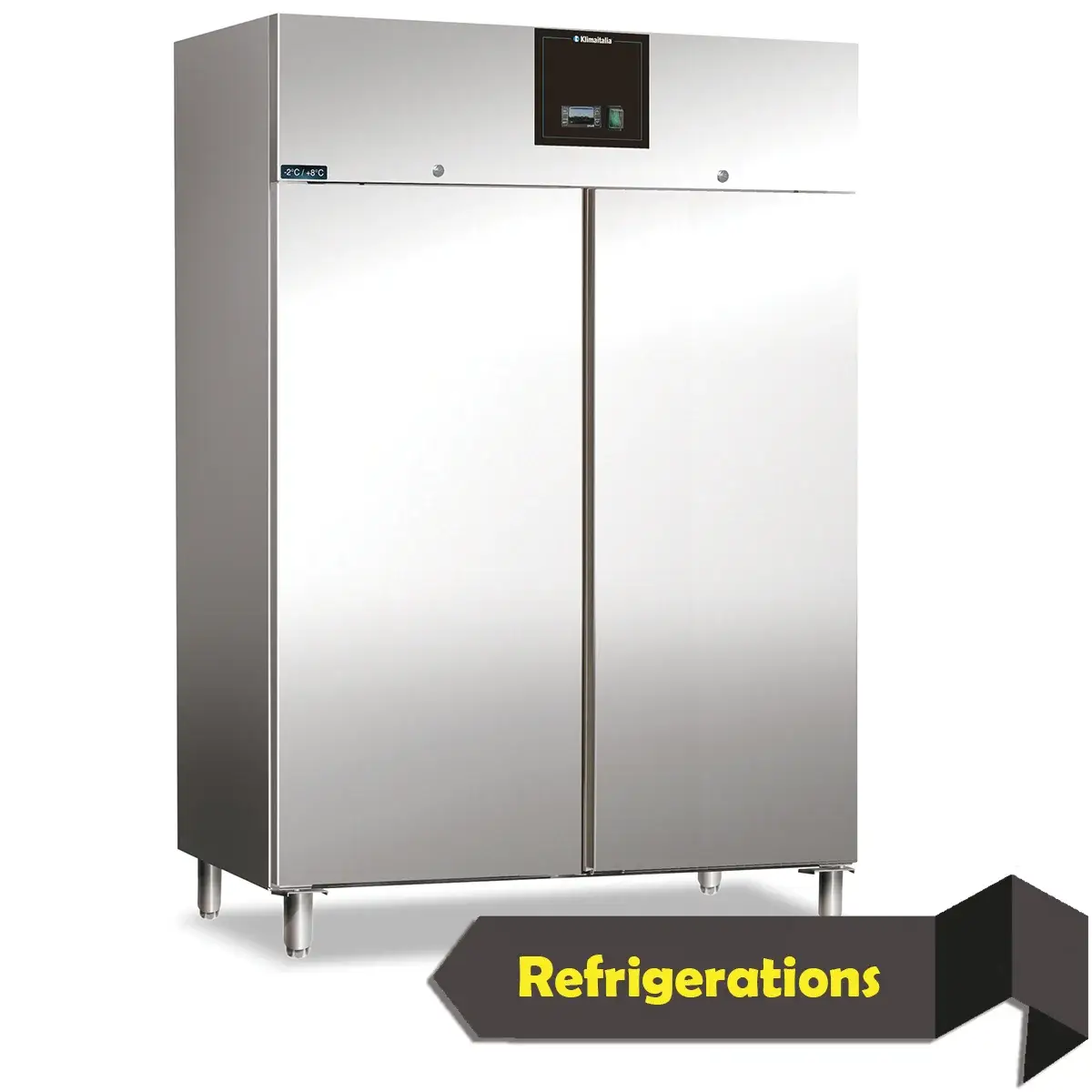

Upright Chiller Double Door
The AXF 1500 TN upright chiller is a double-door commercial refrigerator for restaurants, hotels, cafés, catering kitchens, bakeries, cloud kitchens, supermarkets, and food production areas. It supports chilled storage for ingredients, packed food, beverages, dairy items, vegetables, and daily kitchen stock.
In addition, the 1500-litre class capacity gives professional kitchens more storage space in one upright footprint. Therefore, this model suits busy foodservice operations that need reliable chilled storage with stainless steel construction.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AXF 1500 TN |
| Product Type | Commercial upright chiller |
| Supplier | Available through ALPHA |
| ALPHA Supply Reference | ALPHA project-ready specification for commercial upright chiller supply |
| External Dimensions | 1480 x 830 x 2010 mm |
| Packaging Dimensions | 1505 x 855 x 2070 mm |
| Internal Dimensions | 1360 x 700 x 1410 mm |
| Temperature Range | -2°C to +8°C |
| Climate Class | 5 |
| Net / Gross Volume | 1056 / 1476 L |
| Thermostat | Electronic |
| Noise Level | 52 dB |
| Remote Controller | Optional |
| Insulation Thickness | 60 mm |
| Interior / Exterior Material | All AISI 304 stainless steel |
| Defrost | Automatic defrost with electric heater |
| Cooling System | Ceiling evaporator |
| Lighting | LED, 220V / 0.6W |
| Door Type | Self-closing doors |
| Lock and Key | Yes |
| Shelves | 6 shelves, 534 x 650 mm, plus 2 shelves, 636 x 660 mm, gray colour shelves |
| Feet | 4 feet |
| Castors | Optional, height 140 mm |
| Net / Gross Weight | 195 / 210 kg |
| Voltage / Frequency | 220V / 50Hz |
| Refrigerant | R290 |
| Absorption | 320 W |
| Energy Consumption | 3.32 kWh / 24h |
Call WhatsApp Request Quotation
Key Specs Summary
| Buying Point | Details |
|---|---|
| Large Upright Capacity | 1056 L net volume for professional chilled storage |
| Temperature Range | -2°C to +8°C for chilled food storage |
| AISI 304 Stainless Steel | Stainless steel interior and exterior for commercial kitchen use |
| Self-Closing Doors | Helps reduce temperature loss during busy operation |
| Electronic Thermostat | Supports controlled temperature management |
| R290 Refrigerant | Uses R290 refrigerant according to supplied specification |
Best For
- Restaurants and hotel kitchens.
- Catering kitchens and central kitchens.
- Cloud kitchens and food production areas.
- Bakeries, cafés, and cafeterias.
- Cold storage for ingredients, prepared food, dairy, beverages, and packed items.
- Commercial kitchens that need a high-capacity upright chiller.
Professional Chilled Storage for Busy Kitchens
The AXF 1500 TN gives kitchens a strong upright refrigeration solution with stainless steel construction and a practical internal shelf layout. As a result, staff can organize chilled stock across multiple shelf levels and access items quickly during service.
Moreover, the self-closing doors, lock and key, LED lighting, electronic thermostat, and automatic defrost system support daily commercial use. The ceiling evaporator design also keeps the internal space clear for organized storage.
Installation and Clearance Notes
- Confirm site access before delivery because the external size is 1480 x 830 x 2010 mm.
- Check doorway, lift, corridor, and kitchen entry clearance before ordering.
- Allow proper ventilation space around the unit according to site and supplier requirements.
- Install the chiller on a level floor and keep it away from direct heat sources.
- Use a suitable 220V / 50Hz electrical supply.
- Do not overload shelves beyond the approved loading limit.
- Clean the cabinet, shelves, door gaskets, and condenser area according to maintenance guidance.
Delivery and Support in UAE
ALPHA supplies upright chillers, commercial refrigerators, stainless steel refrigeration equipment, refrigerated counters, freezers, and kitchen equipment for restaurants, hotels, cafés, bakeries, catering kitchens, cloud kitchens, and food production projects across the UAE. In addition, ALPHA can confirm availability, delivery timing, electrical requirements, and project details before quotation.
For AXF 1500 TN upright chiller supply or commercial kitchen refrigeration planning, request a quotation from ALPHA.
GCC Export Support
ALPHA can support selected commercial refrigeration equipment orders from the UAE to Qatar and Saudi Arabia. However, availability, packing, delivery terms, shipping cost, voltage requirements, and warranty arrangements depend on product type, quantity, and destination.
Warranty and After-Sales Note
ALPHA provides support according to the confirmed quotation and final supply specification. However, warranty coverage does not include damage caused by misuse, poor ventilation, wrong electrical supply, blocked condenser, poor cleaning, site access damage, overloading, impact, or unauthorized modification.
Related Commercial Kitchen Equipment
- Refrigerated Counter 3 Doors CXF3100TN
- 2 Door Refrigerated Counter
- Freezer Counter Top 2 Doors
- Undercounter Freezer 3 Door CXF3100BT
FAQ
What is the AXF 1500 TN used for?
It is used for chilled storage of ingredients, packed food, dairy items, beverages, prepared food, and daily kitchen stock.
What is the temperature range of AXF 1500 TN?
The listed temperature range is -2°C to +8°C.
What is the net volume?
The listed net volume is 1056 litres, and the gross volume is 1476 litres.
Is the cabinet stainless steel?
Yes. The supplied specification mentions AISI 304 stainless steel for both interior and exterior.
Does the AXF 1500 TN have self-closing doors?
Yes. The listed specification includes self-closing doors with lock and key.
